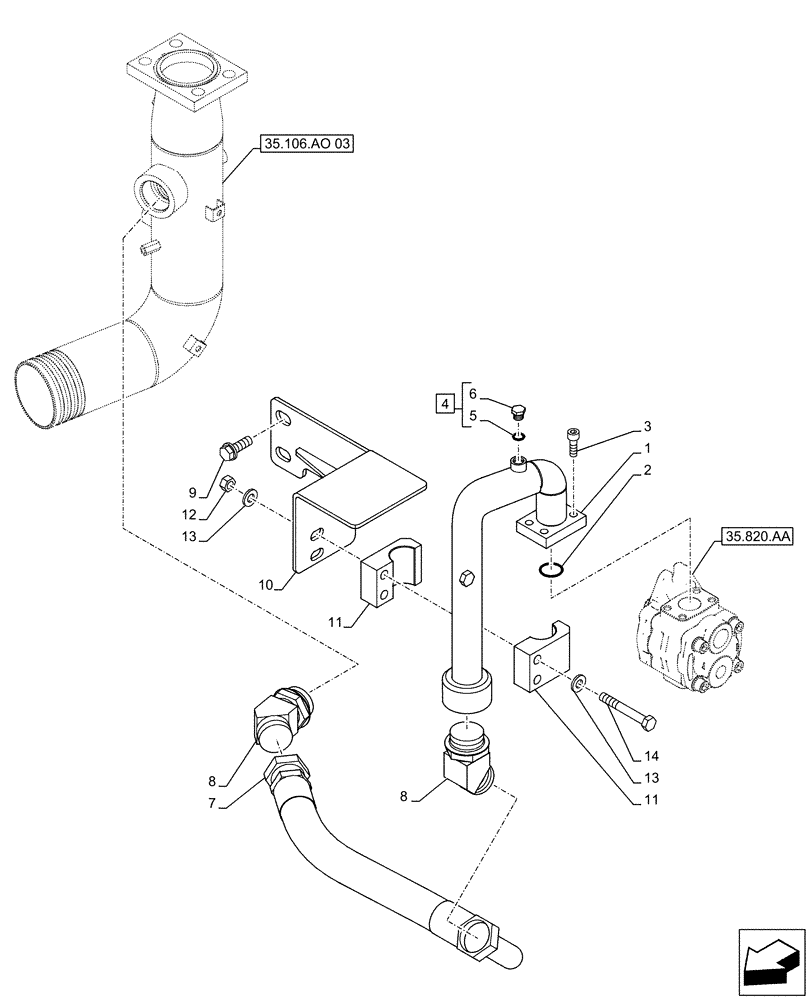

Запчасти Case CX500D LC (35.106.AO[04]) - VARIABLE DELIVERY HYDRAULIC PUMP, SUCTION PIPE (35) - HYDRAULIC SYSTEMS

1

KTJ16740

PIPE

1шт.

2

153626A1

O-RING

1шт.

3

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

4

159002A1

PLUG

ASSY, Incl 5, 6

1шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

6

NSS

NOT SOLD SEPARAT

Plug, Incl in 4

1шт.

7

KTJ15950

HYDRAULIC HOSE

38mm ID x 640mm

1шт.

8

157589A1

ELBOW

2шт.

9

165929A1

BOLT,Sems, M16

M16 x 50mm

2шт.

10

KTJ16750

BRACKET

1шт.

11

KWJ10130

CLAMP

2шт.

12

162R012VR

NUT

M8

2шт.

13

150811A1

WASHER

M8

4шт.

14

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.
