(35.106.AO[03]) - VARIABLE DELIVERY HYDRAULIC PUMP, SUCTION PIPE

Запчасти Case CX500D LC (35.106.AO[03]) - VARIABLE DELIVERY HYDRAULIC PUMP, SUCTION PIPE (35) - HYDRAULIC SYSTEMS

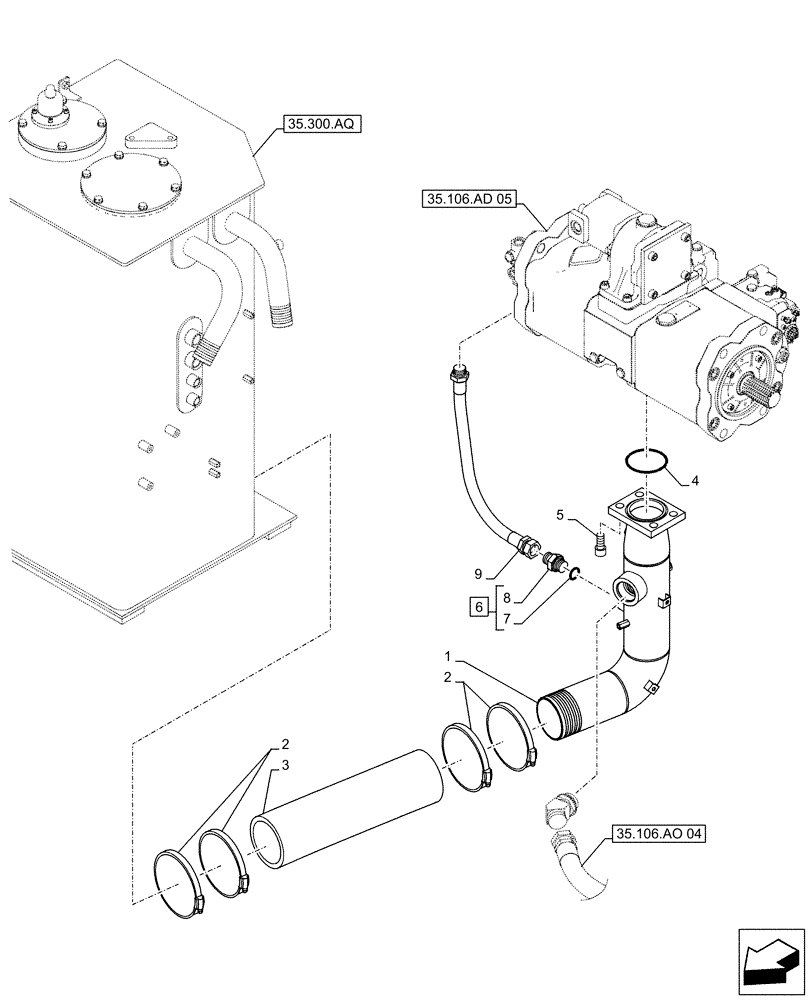

Схема запчастей Case CX500D LC - (35.106.AO[03]) - VARIABLE DELIVERY HYDRAULIC PUMP, SUCTION PIPE (35) - HYDRAULIC SYSTEMS
35.106.ao 04
2
4
5
1
2
9
7
3
6
35.106.ad 05
8
35.300.aq
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KTJ15961

PIPE

1шт.

2

KHJ33120

HOSE CLAMP

4шт.

3

KHJ1263

LARGE HOSE

1шт.

4

KHJ1907

O-RING

1шт.

5

862-16035

HEX SOC SCREW,M16 x 35mm, Cl 12.9

4шт.

6

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, Incl 7, 8

1шт.

7

150542A1

O-RING

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

9

KNJ3074

HYDRAULIC HOSE,19.00 mm ID x 520.00 mm

1шт.
