Запчасти Case CX500D LC (35.106.AO[01]) - VARIABLE DELIVERY HYDRAULIC PUMP, PRESSURE PIPE (35) - HYDRAULIC SYSTEMS

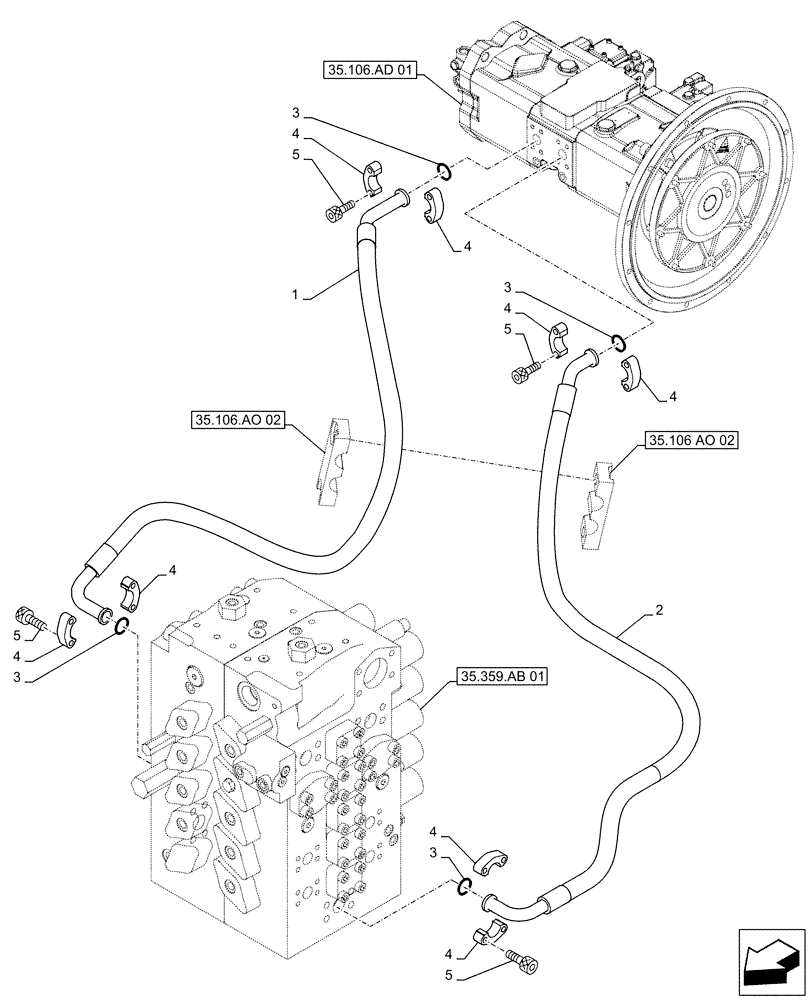

![Схема запчастей Case CX500D LC - (35.106.AO[01]) - VARIABLE DELIVERY HYDRAULIC PUMP, PRESSURE PIPE (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5386348.png)
35.106.ad 01
4
1
3
4
5
5
5
4
3
4
3
4
3
4
2
4
5
35.106.ao 02
4
35.106 ao 02
35.359.ab 01
№
Артикул
Название
Примечание
Количество
1
KTJ15800
HYDRAULIC HOSE
25mm ID x 1300mm, from Hydraulic Pump to Valve Control
1шт.
2
KTJ15790
HYDRAULIC HOSE
25mm ID x 1800mm, from Hydraulic Pump to Valve Control
1шт.
3
162246A1
O-RING
4шт.
4
150561A1
FLANGE
8шт.
5
862-12040
HEX SOC SCREW,M12 x 40mm, Cl 12.9
16шт.
Выбрано товаров: 5
