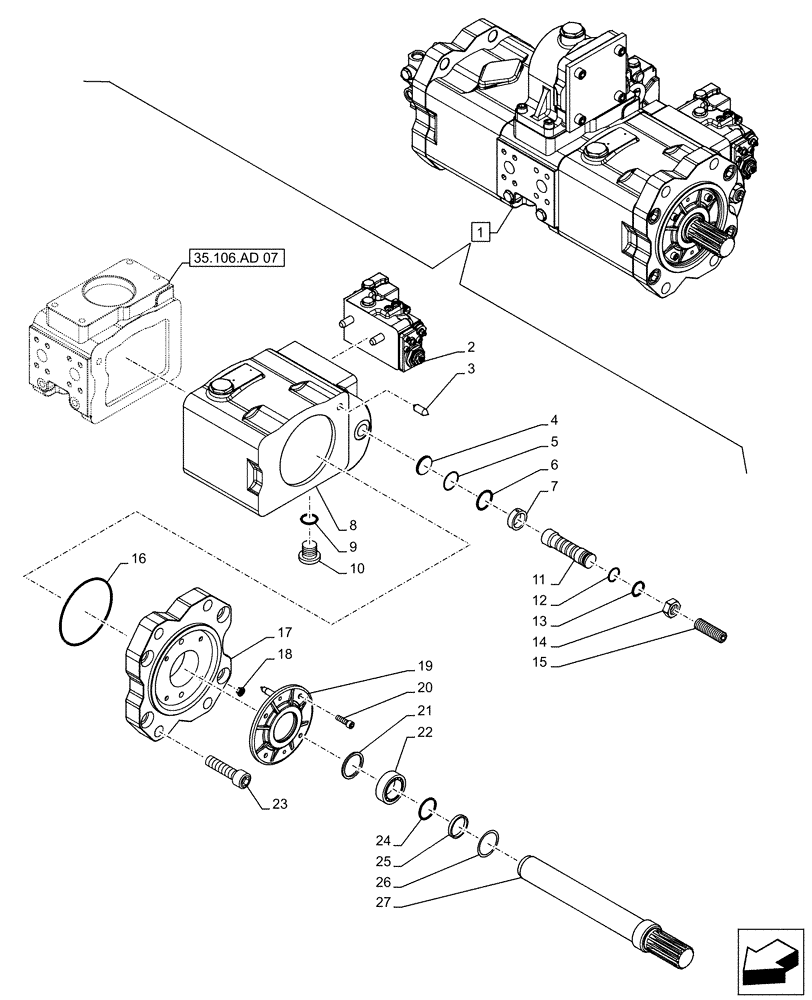

Запчасти Case CX500D LC (35.106.AD[08]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KTJ15671

HYDRAULIC PUMP

ASSY, Incl 2 - 27

1шт.

See also Figure 35.106.AD 05, 35.106.AD 06, 35.106.AD 07, 35.357.AC 02, 35.106.AN

1шт.

2

LL001960

REGULATOR

2шт.

3

LA017130

PIN

1шт.

4

LG00061

STOP

2шт.

5

LE00052

BACK-UP RING

2шт.

6

LE01074

O-RING

2шт.

7

LA012700

SPECIAL PIN

2шт.

8

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

9

LE013440

O-RING

4шт.

10

155471A1

PLUG

4шт.

11

LJ017470

PISTON

2шт.

12

LE00050

BACK-UP RING

2шт.

13

LE01075

O-RING

2шт.

14

LA016780

NUT

2шт.

15

LA00102

SCREW,Spcl

2шт.

16

LE018620

O-RING

2шт.

17

LS005620

BRACKET

2шт.

18

LK006340

PLUG

27шт.

19

LW00062

COVER

1шт.

20

LA016880

BOLT

4шт.

21

LA016820

RING

2шт.

22

LB00645

BEARING, ROLLER, CYL

2шт.

23

LA00101

BOLT,Hex Skt Hd

8шт.

24

LE015120

O-RING

1шт.

25

LH007550

SPACER

3шт.

26

LE018630

OIL SEAL

1шт.

27

LB00927

DRIVE SHAFT

1шт.
