(90.130.AG[02]) - GUARD, MOTO-REDUCTION GEAR

Запчасти Case CX490D RTC (90.130.AG[02]) - GUARD, MOTO-REDUCTION GEAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

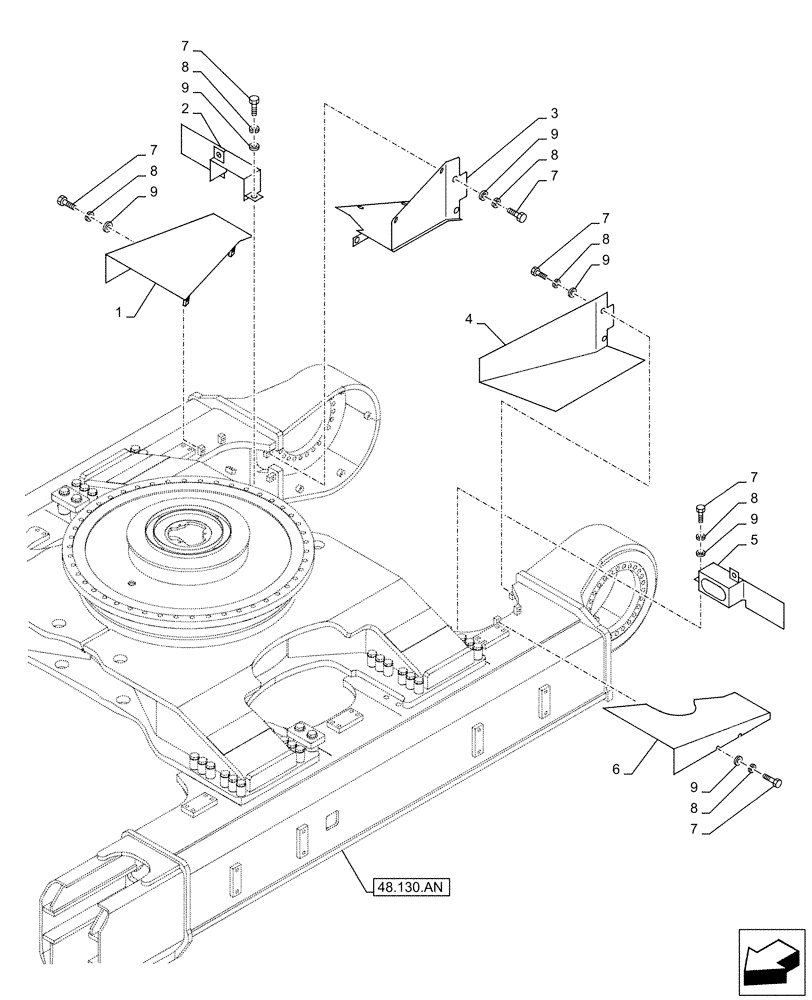

Схема запчастей Case CX490D RTC - (90.130.AG[02]) - GUARD, MOTO-REDUCTION GEAR (90) - PLATFORM, CAB, BODYWORK AND DECALS
48.130.an
7
8
9
8
7
8
9
8
7
6
7
9
7
9
9
2
7
9
8
5
8
4
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KTA1206

COVER

1шт.

2

KTA1205

COVER

1шт.

3

KTA1238

COVER

1шт.

4

KTA1239

COVER

1шт.

5

KTA1209

COVER

1шт.

6

KTA1210

COVER

1шт.

7

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

22шт.

8

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

22шт.

9

KHA0012

WASHER

22шт.

Выбрано товаров: 9
