(90.130.AG[01]) - GUARD, MOTO-REDUCTION GEAR

Запчасти Case CX490D RTC (90.130.AG[01]) - GUARD, MOTO-REDUCTION GEAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

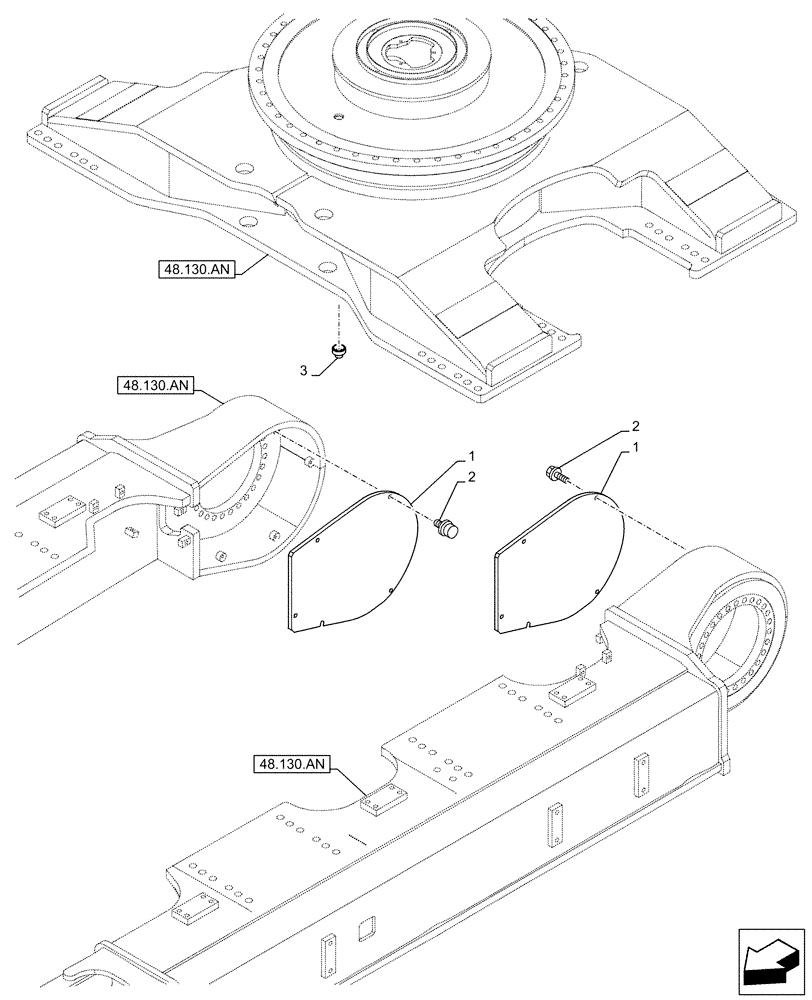

Схема запчастей Case CX490D RTC - (90.130.AG[01]) - GUARD, MOTO-REDUCTION GEAR (90) - PLATFORM, CAB, BODYWORK AND DECALS
48.130.an
2
2
3
1
1
48.130.an
48.130.an
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KTA12030

COVER

2шт.

2

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

12шт.

3

157221A1

PLUG

1шт.
