Запчасти Case CX490D RTC (88.100.35[251]) - DIA KIT, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

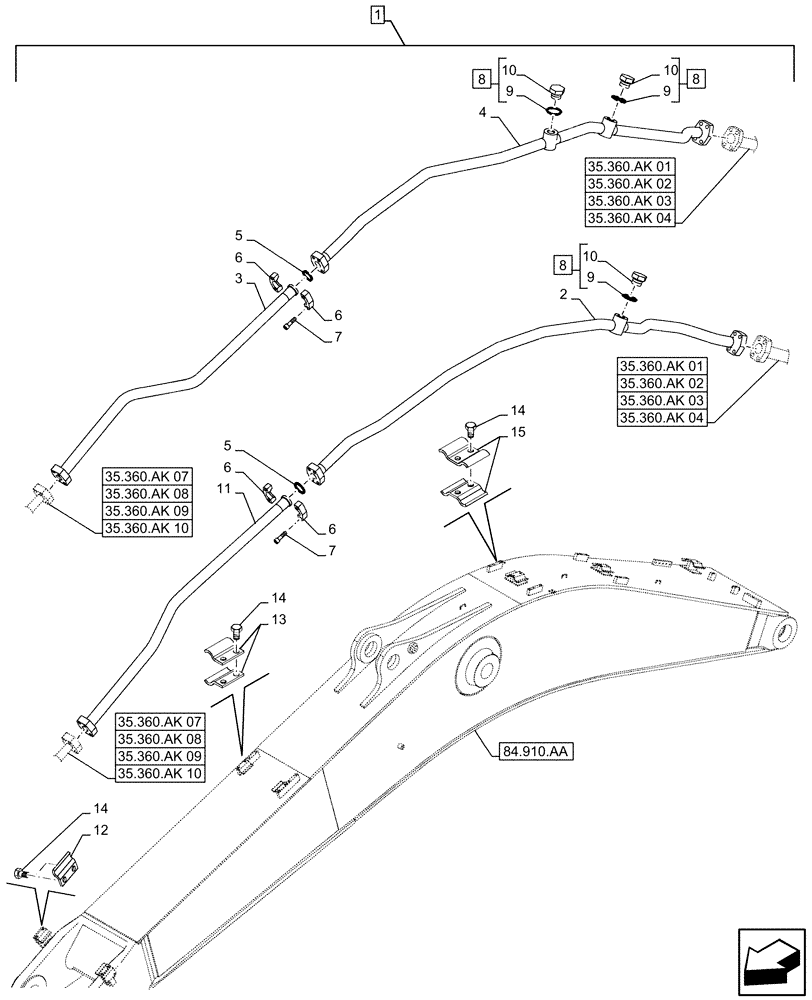

Схема запчастей Case CX490D RTC - (88.100.35[251]) - DIA KIT, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES
13
35.360.ak 10
9
35.360.ak 07
5
7
35.360.ak 02
11
10
6
6
14
2
14
14
9
35.360.ak 02
12
35.360.ak 07
35.360.ak 04
35.360.ak 03
6
35.360.ak 01
35.360.ak 10
8
6
35.360.ak 01
8
5
35.360.ak 08
35.360.ak 03
7
4
35.360.ak 04
9
3
8
84.910.aa
35.360.ak 09
35.360.ak 08
15
10
10
35.360.ak 09
1

Артикул

Название

Примечание

Количество

1

KG0TP682-00

CONSTRUCTION DIA

Option Line, Bar Base, Boom, Incl 2 - 15

1шт.

2

KTV19601

PIPE

LH, from Manifold

1шт.

3

KTV19630

PIPE

RH, to Stop Valve

1шт.

4

KTV19611

PIPE

RH, from Manifold

1шт.

5

153626A1

O-RING

2шт.

6

150124A1

FLANGE

4шт.

7

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

8шт.

8

152924A1

PLUG

ASSY, G3/4", Incl 9, 10

3шт.

9

154503A1

O-RING

3шт.

10

NSS

NOT SOLD SEPARAT

Plug, Incl in 8

3шт.

11

KTV19620

PIPE

LH, to Stop Valve

1шт.

12

KHV11070

COLLAR CLAMP

2шт.

13

KHV11060

COLLAR CLAMP

4шт.

14

166352A1

BOLT

16шт.

15

KHV13310

CLAMP

8шт.

Выбрано товаров: 15
