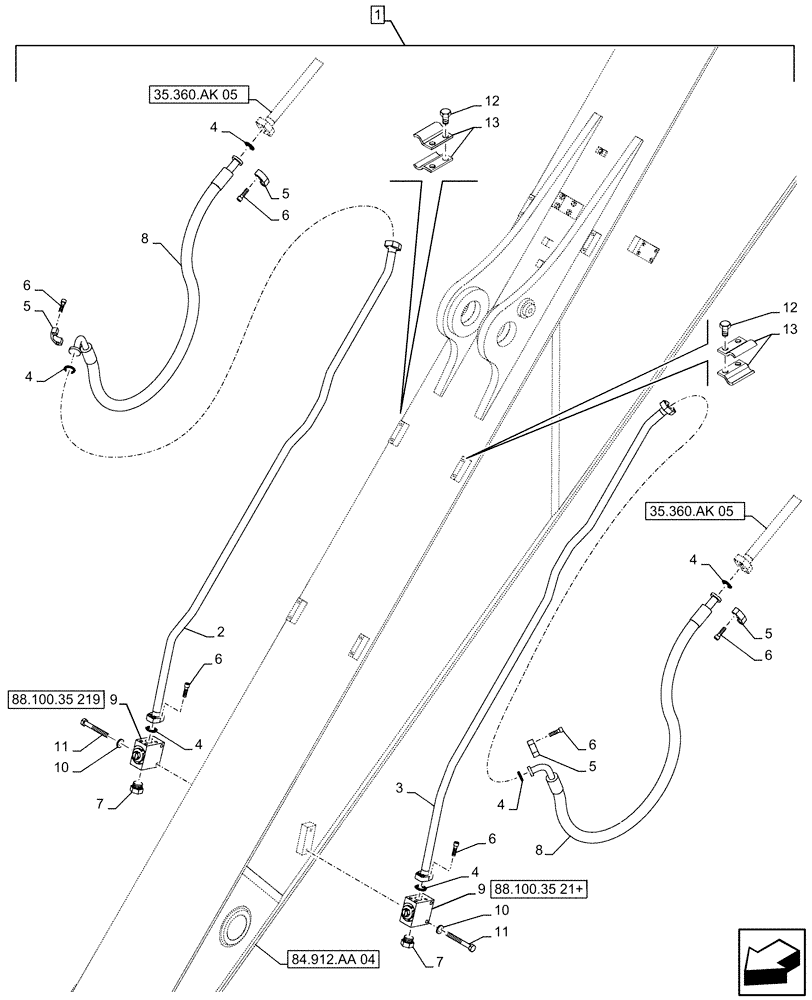

Запчасти Case CX490D RTC (88.100.35[218]) - DIA KIT, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=4.85M) (88) - ACCESSORIES

1

KG0TP680-00

CONSTRUCTION DIA

Option Line, Bar Base, Long Arm, Incl 2 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KTV15431

HYD TUBE,42.70mm OD x 2921.40mm L

RH

1шт.

3

KTV15441

HYD TUBE,42.70mm OD x 2921.40mm L

LH

1шт.

4

164450A1

O-RING

6шт.

5

150124A1

FLANGE

8шт.

6

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

24шт.

7

162335A1

PLUG

2шт.

8

KSV25490

HYDRAULIC HOSE

32mm ID x 2000mm, to Main Control Valve

2шт.

9

KHV12250

SHUT-OFF VALVE

ASSY

2шт.

10

150811A1

WASHER

4шт.

11

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

4шт.

12

166352A1

BOLT

12шт.

13

KHV11060

COLLAR CLAMP

12шт.
