(88.100.35[206]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, LINE

Запчасти Case CX490D RTC (88.100.35[206]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

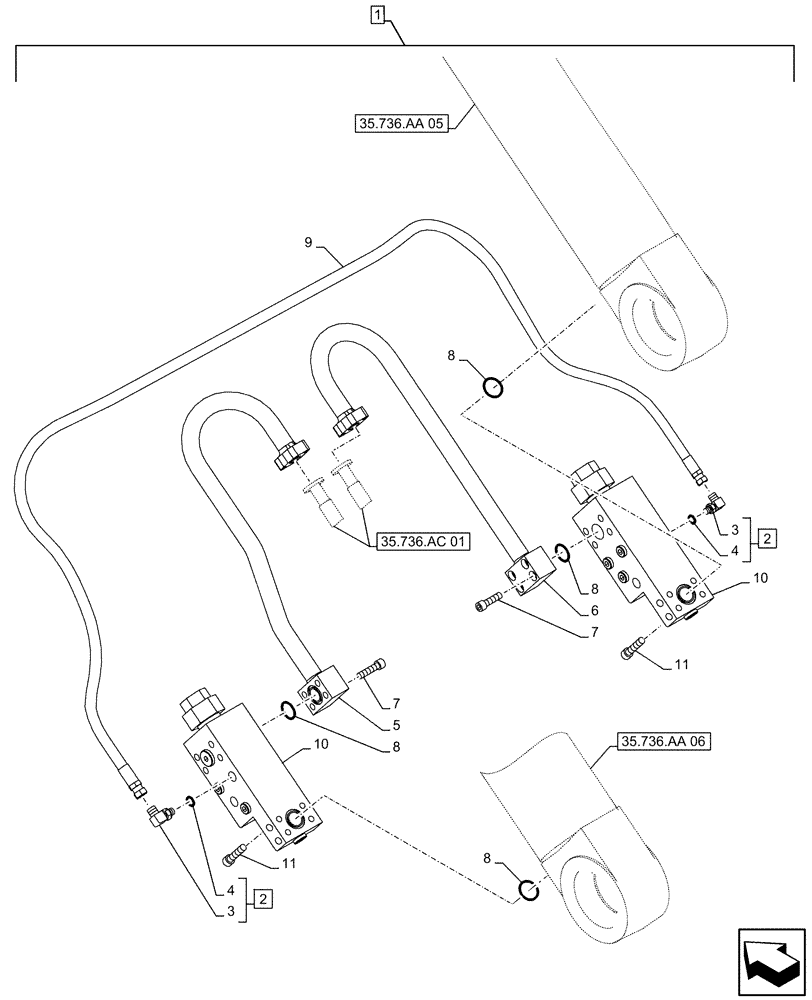

Схема запчастей Case CX490D RTC - (88.100.35[206]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES
8
11
35.736.aa 06
8
2
7
1
3
3
4
10
7
4
10
35.736.ac 01
5
11
6
9
35.736.aa 05
8
8
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0TP704-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

153559A1

ELBOW

ASSY, Incl 3, 4

2шт.

3

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 2

2шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

5

KTV13750

HYD TUBE

1шт.

6

KTV13740

HYD TUBE

1шт.

7

862-12050

HEX SOC SCREW,M12 x 50mm, Cl 12.9

M12 x 50mm

8шт.

8

155211A1

O-RING

4шт.

9

KTV15450

HYDRAULIC HOSE,2000.00 mm

1шт.

10

KTV20460

VALVE

2шт.

11

862-12055

HEX SOC SCREW,M12 x 55mm, Cl 12.9

M12 x 55mm

8шт.
