Запчасти Case CX490D RTC (88.100.35[013]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (88) - ACCESSORIES

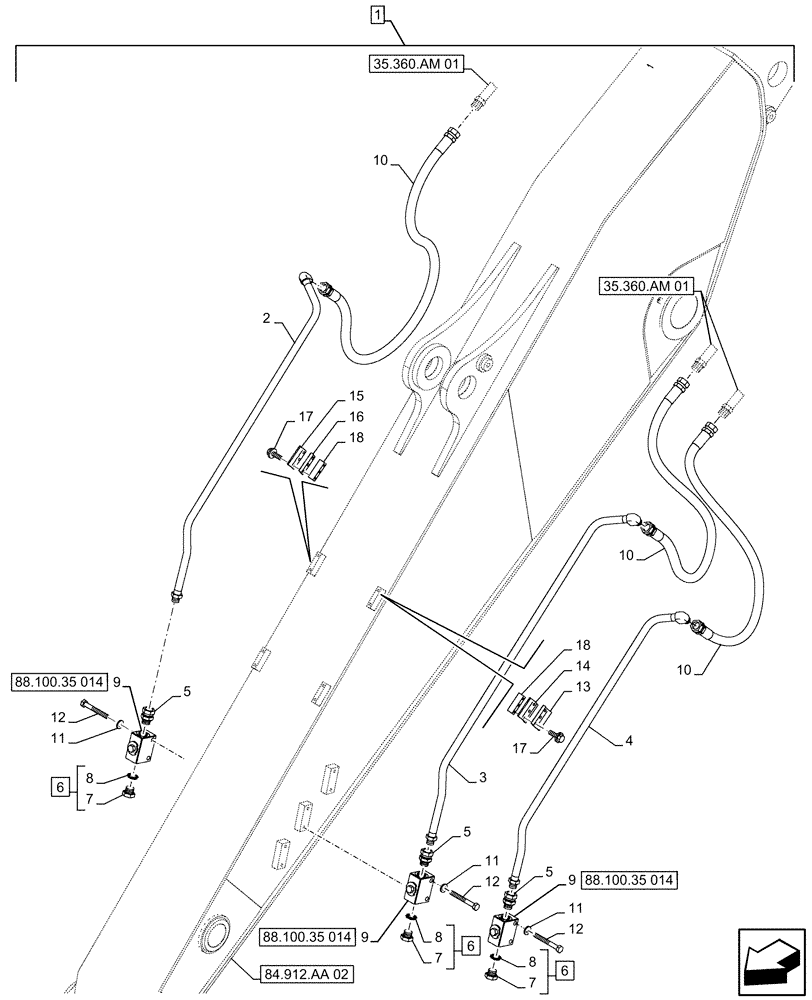

Схема запчастей Case CX490D RTC - (88.100.35[013]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (88) - ACCESSORIES
10
11
5
5
6
4
88.100.35 014
14
17
9
88.100.35 014
15
18
88.100.35 014
8
6
12
17
5
11
16
35.360.am 01
10
3
7
12
35.360.am 01
18
10
6
7
9
11
8
8
13
9
7
84.912.aa 02
2
12
1

Артикул

Название

Примечание

Количество

1

KG0TP686-00

CONSTRUCTION DIA

Second Option Line, Long Arm, Incl 2 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KTV15980

PIPE

1шт.

3

KTV15990

PIPE

1шт.

4

KTV16000

PIPE

1шт.

5

167248A1

FITTING

3шт.

6

152924A1

PLUG

ASSY, Incl 7, 8

3шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 6

3шт.

8

154503A1

O-RING

3шт.

9

KHV10710

VALVE

ASSY

3шт.

10

KTV13190

HYDRAULIC HOSE,19.00 mm ID x 170.00 mm

to Bucket Valve

3шт.

11

150811A1

WASHER

6шт.

12

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

6шт.

13

KHV10450

COLLAR CLAMP

3шт.

14

KHV11410

PIPE CLAMP

3шт.

15

KHV10460

COLLAR CLAMP

3шт.

16

KHV11420

PIPE CLAMP

3шт.

17

166352A1

BOLT

18шт.

18

KHV10960

BAR

6шт.

Выбрано товаров: 19
