Запчасти Case CX490D RTC (39.140.AM[14]) - VAR - 481263 - LINES, HYDRAULIC, COUNTERWEIGHT (39) - FRAMES AND BALLASTING

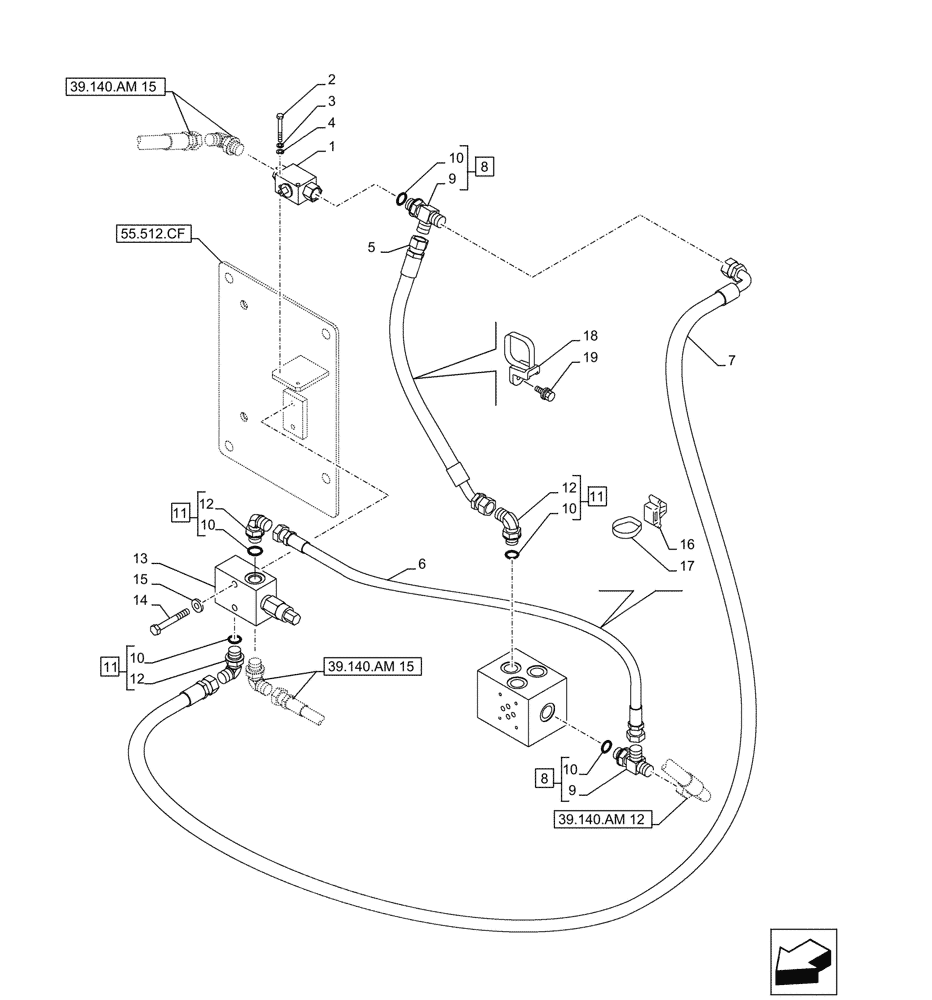

Схема запчастей Case CX490D RTC - (39.140.AM[14]) - VAR - 481263 - LINES, HYDRAULIC, COUNTERWEIGHT (39) - FRAMES AND BALLASTING
55.512.cf
14
11
39.140.am 15
10
11
12
18
9
1
2
4
10
17
19
10
8
3
12
39.140.am 15
11
9
5
6
13
7
16
10
8
15
39.140.am 12
12
10

Артикул

Название

Примечание

Количество

1

KHJ17390

MANIFOLD VALVE

1шт.

2

102R005Y045R

BOLT

M5 x 45mm

2шт.

3

892-11005

LOCK WASHER,M5

2шт.

4

182-005SR

WASHER

2шт.

5

KTJ16830

HYDRAULIC HOSE

9mm ID x 1450mm

1шт.

6

KHJ26720

HYDRAULIC HOSE

1650mm

1шт.

7

KTJ17030

HYDRAULIC HOSE

9mm ID x 490mm

1шт.

8

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, Incl 9, 10 (Qty 1)

2шт.

9

NSS

NOT SOLD SEPARAT

2шт.

10

150031A1

O-RING,10mm ID x 24mm OD

2шт.

11

KHJ28590

ELBOW

ASSY, Incl 12, 10 (Qty 1)

3шт.

12

NSS

NOT SOLD SEPARAT

3шт.

13

KTJ2293

VALVE PRESSURE RELIE

1шт.

14

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

M8 x 60mm

2шт.

15

153081A1

WASHER

M8

2шт.

16

KHR10220

MOUNTING CLIP

1шт.

17

150496A1

MOUNTING CLIP

250mm

1шт.

18

KHR2581

CLAMP

M8

1шт.

19

KHJ1215

BOLT,Spcl

1шт.

Выбрано товаров: 19
