Запчасти Case CX490D RTC (35.353.AE[02]) - TRAVEL MOTOR & REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

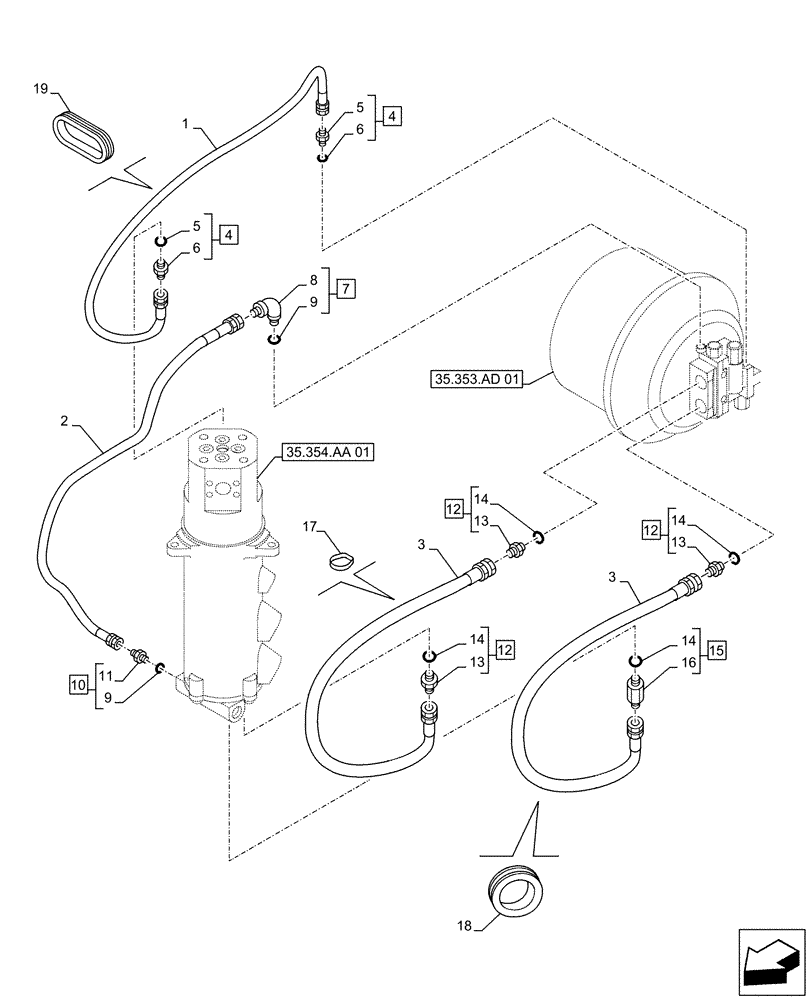

Схема запчастей Case CX490D RTC - (35.353.AE[02]) - TRAVEL MOTOR & REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS
15
14
5
16
13
6
12
10
17
3
14
4
9
14
19
8
5
14
2
13
13
6
9
7
4
18
1
12
3
12
35.354.aa 01
35.353.ad 01
11

Артикул

Название

Примечание

Количество

1

159005A1

HOSE

04mm ID x 3250mm, from Travel Motor to Center Joint

1шт.

2

KBA1163

HYDRAULIC HOSE,12.70 mm ID x 2600.00 mm

12mm ID x 2600mm, from Travel Motor to Center Joint

1шт.

3

KTA1200

HYDRAULIC HOSE,25.40 mm ID x 2550.00 mm

2550mm, from Travel Motor to Center Joint

2шт.

4

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 5, 6 (Qty 1)

2шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

2шт.

6

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

7

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

ASSY, G1/2" x G1/2", Incl 8, 9 (Qty 1)

1шт.

8

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 7

1шт.

9

150539A1

O-RING

2шт.

10

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY,G1/2" x G1/2", Incl 11, 9 (Qty 1)

1шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 10

1шт.

12

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ASSY, G1" x G1", Incl 13, 14 (Qty 1)

3шт.

13

NSS

NOT SOLD SEPARAT

Fitting, Incl in 12

3шт.

14

152211A1

O-RING

4шт.

15

KHJ1156

STUD

ASSY, G1" x 135mm, Incl 16, 14 (Qty 1)

1шт.

16

NSS

NOT SOLD SEPARAT

Fitting, Incl in 15

1шт.

17

150071A1

MOUNTING CLIP

380mm

2шт.

18

158813A1

GROMMET

41mm ID x 575mm

1шт.

19

160414A1

RUBBER BLOCK

25mm x 440mm

1шт.

Выбрано товаров: 19
