Запчасти Case CX490D RTC (35.353.AE[01]) - TRAVEL MOTOR & REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

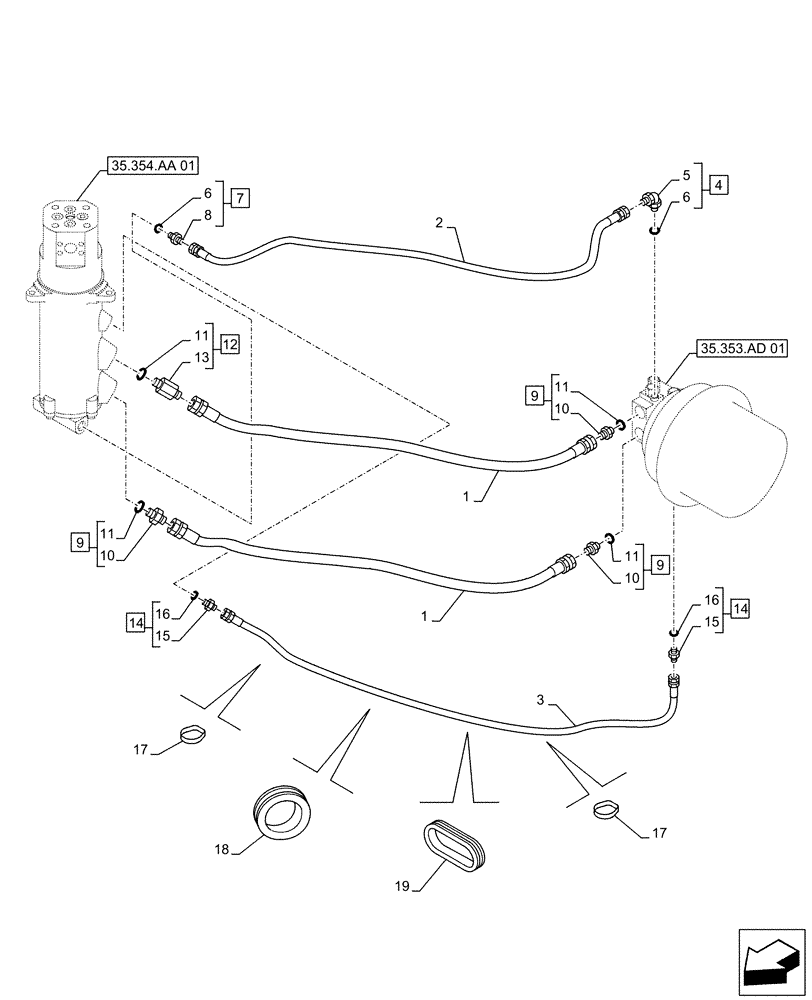

Схема запчастей Case CX490D RTC - (35.353.AE[01]) - TRAVEL MOTOR & REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS
35.353.ad 01
14
11
3
10
15
17
7
1
10
9
9
16
19
18
13
9
12
16
4
6
14
8
17
11
2
15
5
11
6
10
11
1
35.354.aa 01

Артикул

Название

Примечание

Количество

1

KTA1200

HYDRAULIC HOSE,25.40 mm ID x 2550.00 mm

2550mm, from Travel Motor to Center Joint

2шт.

2

KBA1163

HYDRAULIC HOSE,12.70 mm ID x 2600.00 mm

12mm ID x 2600mm, from Travel Motor to Center Joint

1шт.

3

159005A1

HOSE

04mm ID x 3250mm, from Travel Motor to Center Joint

1шт.

4

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

ASSY, G1/2" x G1/2", Incl 5, 6 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 4

1шт.

6

150539A1

O-RING

2шт.

7

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, G1/2" x G1/2", Incl 8, 6 (Qty 1)

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

9

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ASSY, G1" x G1", Incl 10, 11 (Qty 1)

3шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

3шт.

11

152211A1

O-RING

4шт.

12

KHJ1156

STUD

ASSY, G1" x 135mm, Incl 13, 11 (Qty 1)

1шт.

13

NSS

NOT SOLD SEPARAT

Fitting, Incl in 12

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 15, 16

2шт.

15

NSS

NOT SOLD SEPARAT

Fitting, Incl in 14

2шт.

16

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

17

150071A1

MOUNTING CLIP

380mm

3шт.

18

158813A1

GROMMET

41mm x 575mm

1шт.

19

160414A1

RUBBER BLOCK

25mm x 440mm

1шт.

Выбрано товаров: 19
