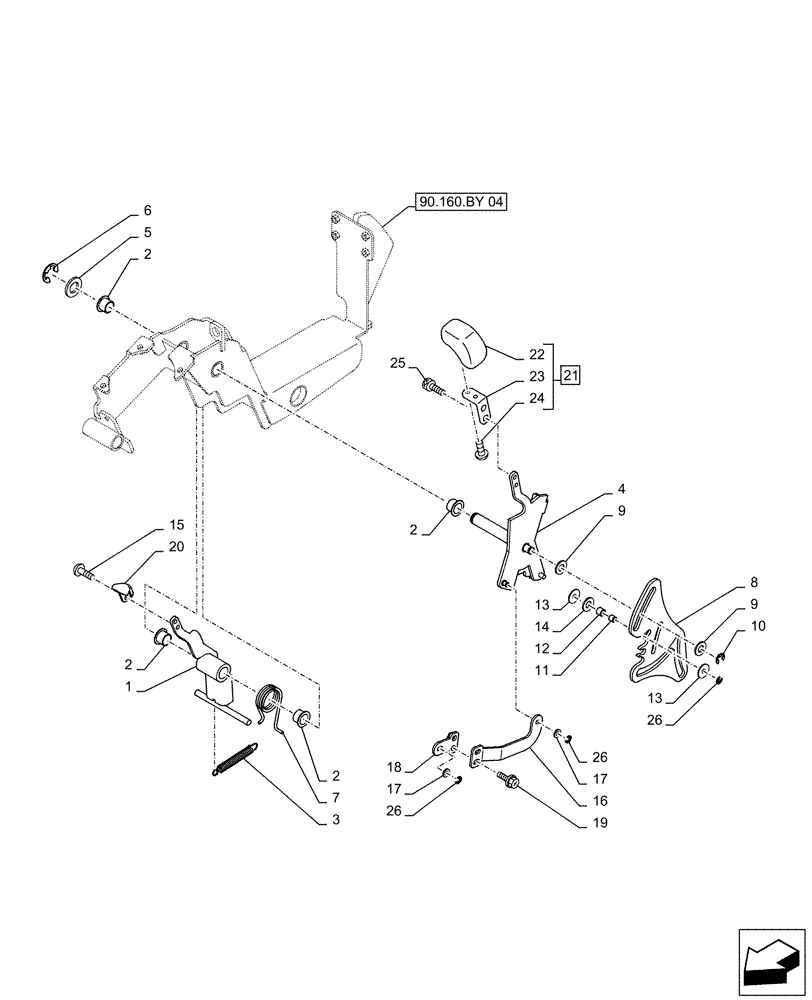

Запчасти Case CX490D LC (90.160.BY[05]) - VAR - 488035, 781277 - CONSOLE, SIDE PANEL, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KHN24021

BELLCRANK

1шт.

2

KHN2249

BUSHING

4шт.

3

KHN26200

SPRING

1шт.

4

KHN24121

SUPPORT

1шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

6

KHN2270

LOCKING RING

1шт.

7

KHN13290

SPRING

1шт.

8

KHN13301

PLATE

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

10

378J0080Z

RING

1шт.

11

KHN13310

BUSHING

1шт.

12

KHN13320

ROLLER

1шт.

13

150529A1

WASHER

2шт.

14

150409A1

WASHER

1шт.

15

KHN23760

SCREW

1шт.

16

KHN24140

SHEET METAL

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

18

KHN24150

SHEET METAL

1шт.

19

KHN2132

BOLT,Hex Flg Hd, M6 x 16

2шт.

20

KHN12370

LEVER

1шт.

21

KHN17080

HANDLE GRIP

ASSY, Incl 22 - 24

1шт.

22

KHN12380

GRIP

1шт.

23

KHN17090

BRACKET, SUPPORTING

1шт.

24

KHR2733

SELF-TAP SCREW

2шт.

25

KHN17280

BOLT,Hex Skt Hd

2шт.

26

378J0050Z

CIRCLIP

3шт.
