(90.105.BV[05]) - STD + VAR - 461569, 481027 - HOUSING & COVERS, ADDITIONAL, HANDRAIL

Запчасти Case CX490D LC (90.105.BV[05]) - STD + VAR - 461569, 481027 - HOUSING & COVERS, ADDITIONAL, HANDRAIL (90) - PLATFORM, CAB, BODYWORK AND DECALS

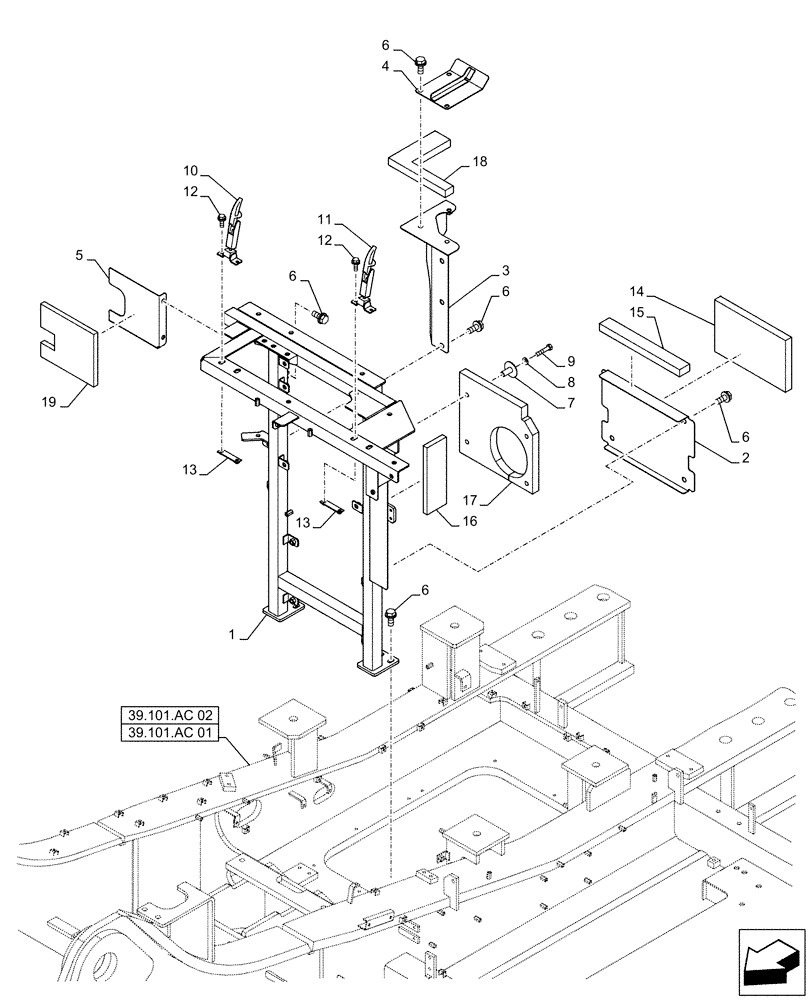

Схема запчастей Case CX490D LC - (90.105.BV[05]) - STD + VAR - 461569, 481027 - HOUSING & COVERS, ADDITIONAL, HANDRAIL (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.101.ac 02
8
6
6
12
3
6
5
14
9
18
1
12
6
16
13
13
2
7
15
17
10
6
11
19
4
39.101.ac 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KTN17870

FRAME

1шт.

2

KTN16570

COVER

1шт.

3

KTN18070

COVER

1шт.

4

KTN18080

COVER

1шт.

5

KTN16601

COVER

1шт.

6

166352A1

BOLT

M12 x 30mm

16шт.

7

KHH0358

RETAINER

4шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

9

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

4шт.

10

151356A1

LOCK ASSY

1шт.

11

151361A1

HANDLE

1шт.

12

167182A1

BOLT,Sems, M8 x 25mm

4шт.

13

KHN24200

PLATE

2шт.

14

KSN1339

INSULATION

1шт.

15

KTN16870

SEAL

1шт.

16

KTN16930

SEAL

1шт.

17

KTN18210

SEAL

1шт.

18

KTN18230

SEAL

1шт.

19

KTN18221

SEAL

1шт.
