(88.100.35[253]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, CLAMP

Запчасти Case CX490D LC (88.100.35[253]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, CLAMP (88) - ACCESSORIES

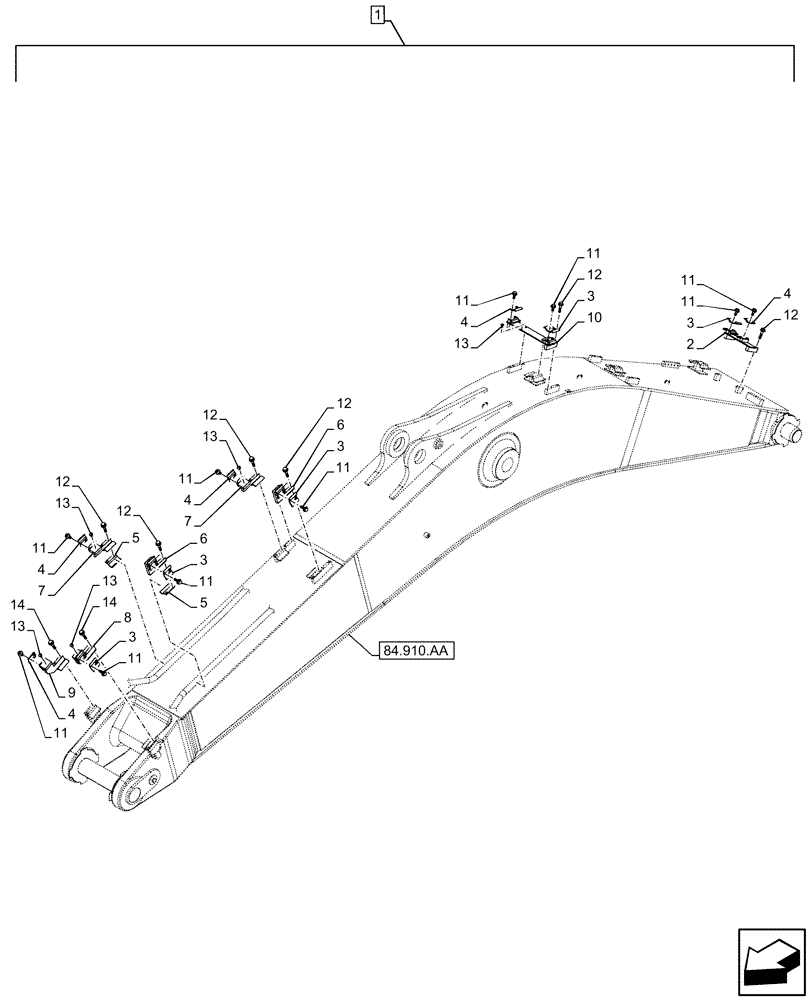

Схема запчастей Case CX490D LC - (88.100.35[253]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, CLAMP (88) - ACCESSORIES
10
13
12
12
6
84.910.aa
11
9
6
7
4
11
4
4
3
13
5
3
11
8
13
1
7
4
14
4
12
11
11
11
11
11
12
11
13
14
12
5
12
13
2
3
11
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0TP689-00

CONSTRUCTION DIA

Second Option Line, Boom, Incl 2 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KTV12830

BAR

1шт.

3

KHV10450

COLLAR CLAMP

6шт.

4

KHV10460

COLLAR CLAMP

6шт.

5

KHV13360

CLAMP

2шт.

6

KTV19700

BAR

2шт.

7

KTV19740

BAR

2шт.

8

KTV19750

BAR

1шт.

9

KTV19760

BAR

1шт.

10

KTV21060

BAR

2шт.

11

166352A1

BOLT

30шт.

12

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

14шт.

13

KHJ15080

CAP

8шт.

14

KHV11670

BOLT

4шт.
