(88.100.35[252]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE

Запчасти Case CX490D LC (88.100.35[252]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

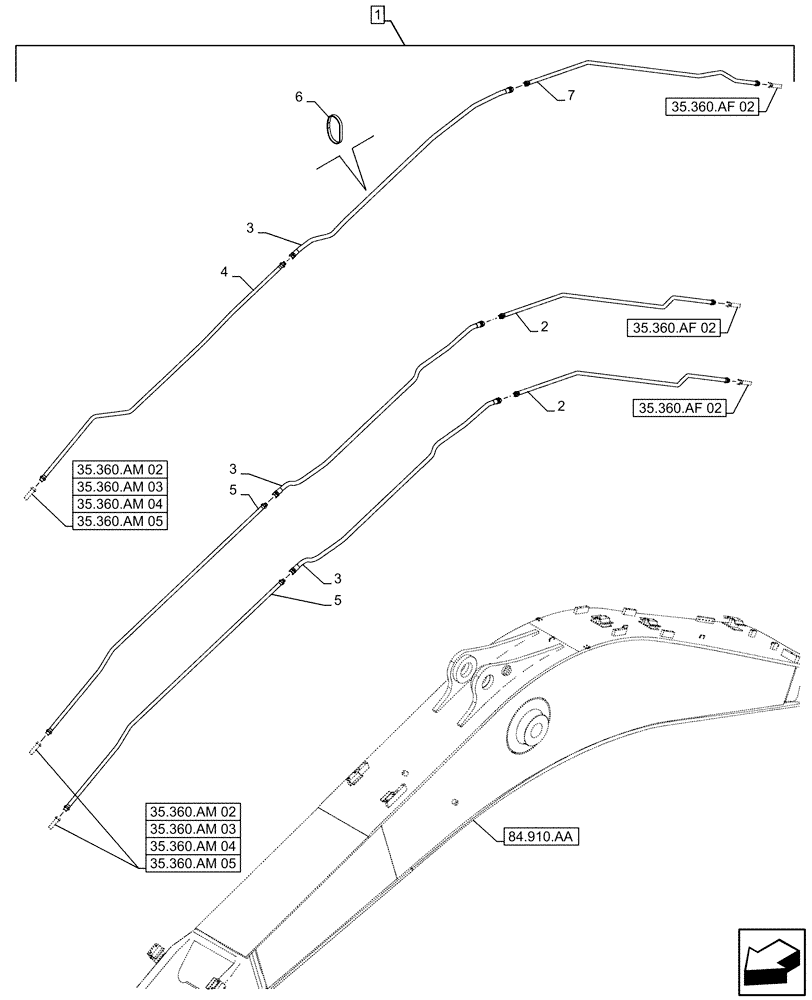

Схема запчастей Case CX490D LC - (88.100.35[252]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES
35.360.af 02
6
35.360.am 04
35.360.am 02
35.360.am 05
3
35.360.am 05
5
3
84.910.aa
2
35.360.am 03
7
35.360.am 03
1
3
35.360.am 04
35.360.af 02
35.360.af 02
5
2
35.360.am 02
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0TP689-00

CONSTRUCTION DIA

Second Option Line, Boom, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KTV19660

PIPE

From Bucket Valve to Stop Valve

2шт.

3

KTV21230

HYDRAULIC HOSE

19mm ID x 2350mm

3шт.

4

KTV19691

PIPE

to Stop Valve

1шт.

5

KTV19680

PIPE

to Stop Valve

2шт.

6

150071A1

MOUNTING CLIP

380mm

10шт.

7

KTV19671

PIPE

From Bucket Valve to Stop Valve

1шт.
