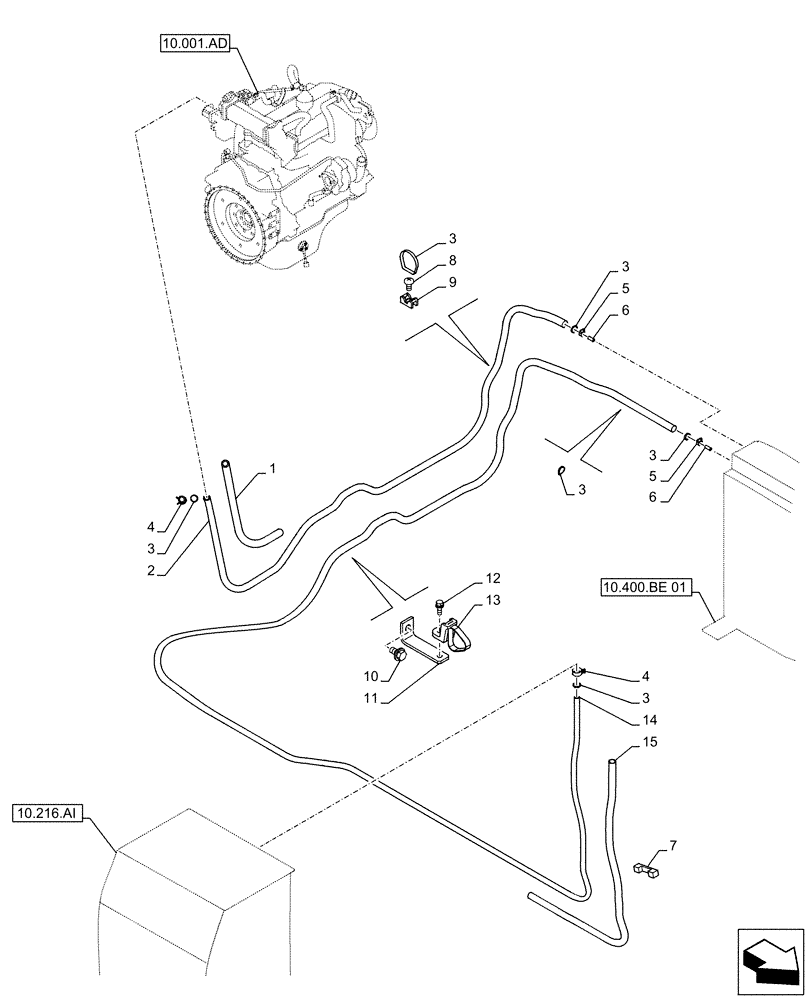

Запчасти Case CX490D LC (10.216.BA[04]) - FUEL LINE (10) - ENGINE

1

157923A1

PLASTIC-RUBBER TUBE

1шт.

2

KHH19040

HOSE

2850mm, from Engine to Radiator

1шт.

3

150496A1

MOUNTING CLIP

19шт.

4

KHH19550

CLAMP

1шт.

5

157913A1

CLAMP

1шт.

6

KHH15210

SPACER

1шт.

7

KTH14460

SEAL

1шт.

8

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

3шт.

9

150860A1

COLLAR

3шт.

10

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

11

KTH10950

SUPPORT

1шт.

12

KHJ1215

BOLT,Spcl

9шт.

13

KHR2581

CLAMP

9шт.

14

KHH17890

HOSE

from Fuel Tank to Radiator

1шт.

15

168365A1

PLASTIC-RUBBER TUBE

1шт.
