(88.100.35[220]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=4.85M)

Запчасти Case CX490D LC (88.100.35[220]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=4.85M) (88) - ACCESSORIES

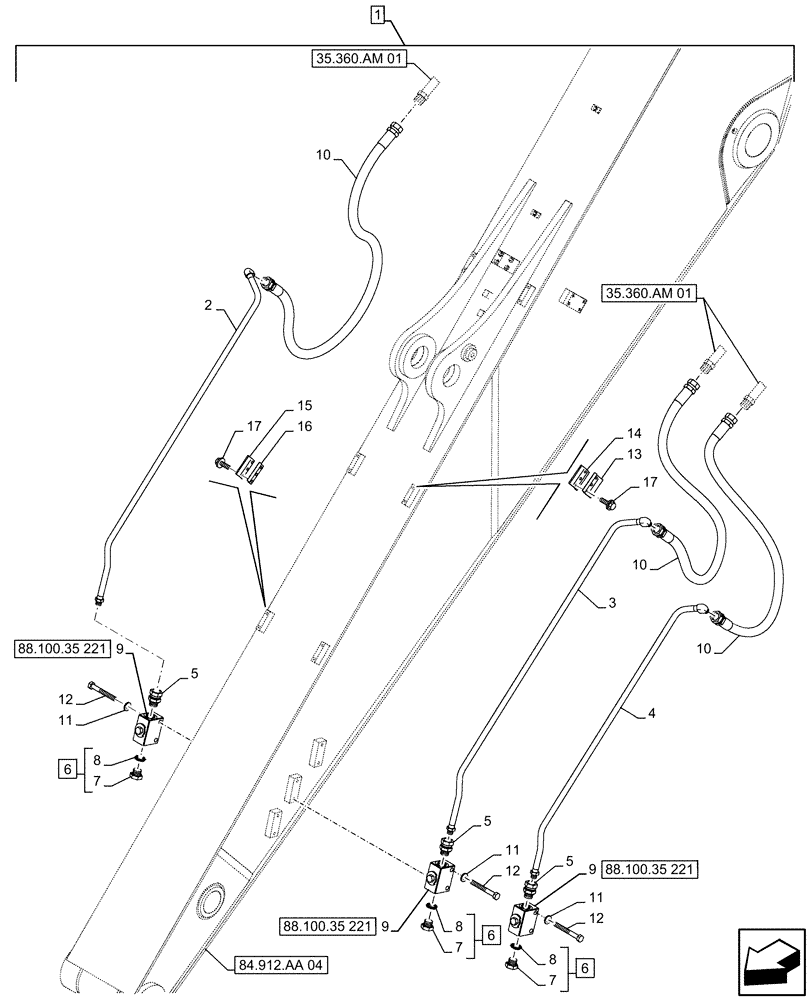

Схема запчастей Case CX490D LC - (88.100.35[220]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=4.85M) (88) - ACCESSORIES
1
12
10
8
6
5
10
2
88.100.35 221
7
7
17
88.100.35 221
16
88.100.35 221
5
4
8
5
13
12
9
10
14
84.912.aa 04
9
35.360.am 01
15
11
17
8
9
11
35.360.am 01
3
6
6
7
12
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0TP687-00

CONSTRUCTION DIA

Second Option Line, Long Arm, Incl 2 - 17

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KTV17910

PIPE

1шт.

3

KTV17890

PIPE

1шт.

4

KTV20400

PIPE

1шт.

5

167248A1

FITTING

3шт.

6

152924A1

PLUG

ASSY, Incl 7, 8

3шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 6

3шт.

8

154503A1

O-RING

3шт.

9

KHV10710

VALVE

ASSY

3шт.

10

KTV21510

HYDRAULIC HOSE

19.00mm ID x 1600mm, to Bucket Valve

3шт.

11

150811A1

WASHER

6шт.

12

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

6шт.

13

KHV10450

COLLAR CLAMP

3шт.

14

KHV11410

PIPE CLAMP

3шт.

15

KHV10460

COLLAR CLAMP

3шт.

16

KHV11420

PIPE CLAMP

3шт.

17

166352A1

BOLT

18шт.
