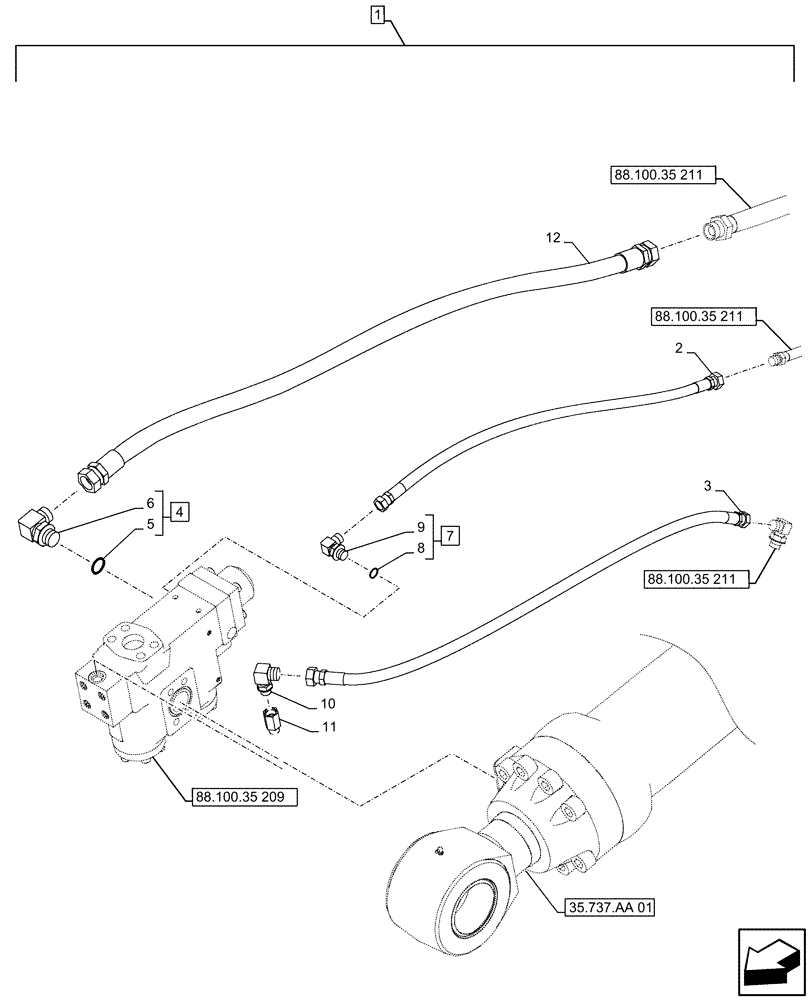

Запчасти Case CX490D LC (88.100.35[217]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

1

KG0TP704-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ35350

HYDRAULIC HOSE

4600mm, from Safety Valve to Control Valve

1шт.

3

KHJ35360

HYDRAULIC HOSE

4000mm, from Safety Valve to Control Valve

1шт.

4

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

ASSY, G3/4" x G3/4", Incl 5, 6

1шт.

5

150542A1

O-RING

1шт.

6

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 4

1шт.

7

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

ASSY, G3/8" x G3/8", Incl 8, 9

1шт.

8

150031A1

O-RING,10mm ID x 24mm OD

1шт.

9

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 7

1шт.

10

157937A1

ELBOW

G3/8" x G1/2"

1шт.

11

KHV0373

STUD

G3/8" x G3/8"

1шт.

12

KHJ35340

HYDRAULIC HOSE

3600mm, from Safety Valve to Control Valve

1шт.
