(88.100.35[216]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, COMPONENTS

Запчасти Case CX490D LC (88.100.35[216]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, COMPONENTS (88) - ACCESSORIES

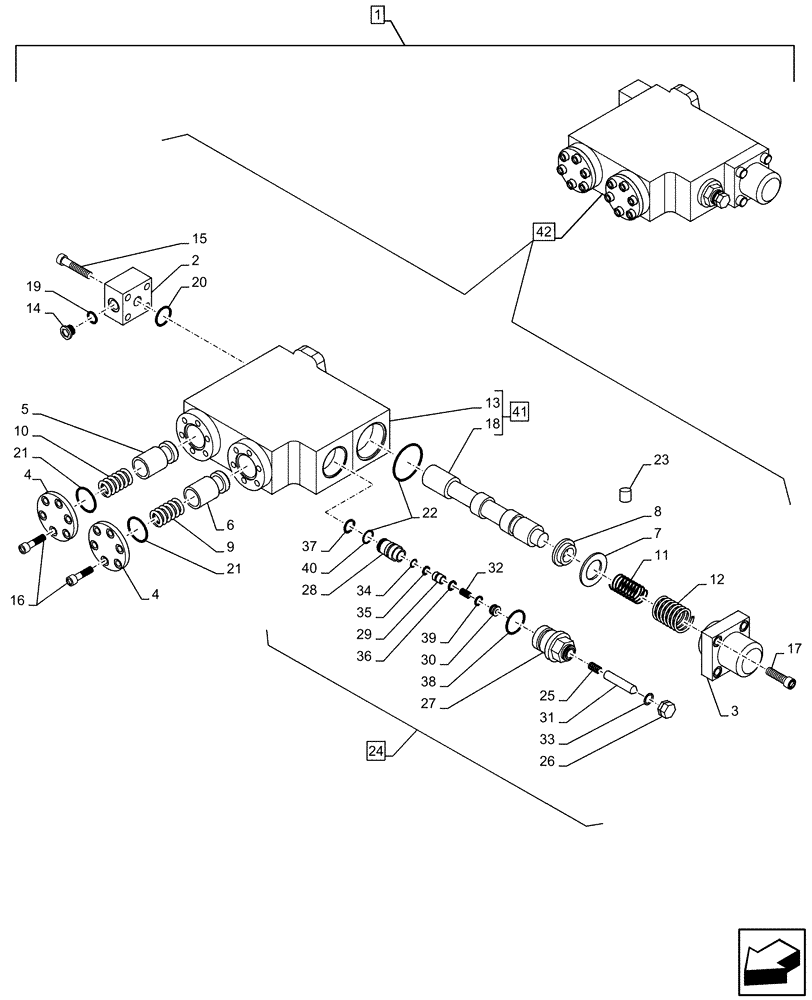

Схема запчастей Case CX490D LC - (88.100.35[216]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, COMPONENTS (88) - ACCESSORIES
2
6
1
21
19
20
25
35
34
40
3
14
12
7
23
21
31
42
39
4
8
5
32
30
4
16
13
17
24
15
9
26
29
28
37
41
11
27
18
33
38
10
22
36
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0TP704-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 42

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

164985A1

COVER

1шт.

3

164986A1

COVER

1шт.

4

164987A1

COVER

2шт.

5

164988A1

PLUNGER

1шт.

6

164989A1

PLUNGER

1шт.

7

164990A1

SPACER

1шт.

8

164991A1

HOLDER

1шт.

9

164992A1

SPRING

1шт.

10

164993A1

SPRING

1шт.

11

164994A1

SPRING

1шт.

12

164995A1

SPRING

1шт.

13

NSS

NOT SOLD SEPARAT

Body, Incl in 41

1шт.

14

155510A1

PLUG

1шт.

15

861-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

M8 x 35mm

4шт.

16

108R010Y030N

BOLT

M10 x 30mm

12шт.

17

108R010Y040N

BOLT

M10 x 40mm

4шт.

18

NSS

NOT SOLD SEPARAT

Spool valve, Incl in 41

1шт.

19

154455A1

O-RING

1шт.

20

154624A1

O-RING

1шт.

21

154569A1

O-RING

2шт.

22

154657A1

O-RING

1шт.

23

163873A1

PLUG

6шт.

24

164997A1

VALVE

ASSY, Relief, Incl 25 - 40

1шт.

25

NSS

NOT SOLD SEPARAT

Spring, Incl in 24

1шт.

26

NSS

NOT SOLD SEPARAT

Nut, Incl in 24

1шт.

27

NSS

NOT SOLD SEPARAT

Body, Incl in 24

1шт.

28

NSS

NOT SOLD SEPARAT

Sleeve, Incl in 24

1шт.

29

NSS

NOT SOLD SEPARAT

Poppet, Incl in 24

1шт.

30

NSS

NOT SOLD SEPARAT

Seat, Incl in 24

1шт.

31

NSS

NOT SOLD SEPARAT

Valve, Incl in 24

1шт.

32

NSS

NOT SOLD SEPARAT

Spring, Incl in 24

1шт.

33

NSS

NOT SOLD SEPARAT

Gasket, Incl in 24

1шт.

34

NSS

NOT SOLD SEPARAT

Ring back up, Incl in 24

1шт.

35

NSS

NOT SOLD SEPARAT

O-ring, Incl in 24

1шт.

36

NSS

NOT SOLD SEPARAT

O-ring, Incl in 24

1шт.

37

154475A1

O-RING

1шт.

38

154515A1

O-RING

1шт.

39

NSS

NOT SOLD SEPARAT

Ring back up, Incl in 24

1шт.

40

153961A1

BACK-UP RING

1шт.

41

LR00873

VALVE BODY

ASSY, Incl 13, 18

1шт.

42

KTV1316

VALVE

ASSY, Incl 2 - 41

1шт.
