(88.100.35[212]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE

Запчасти Case CX490D LC (88.100.35[212]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

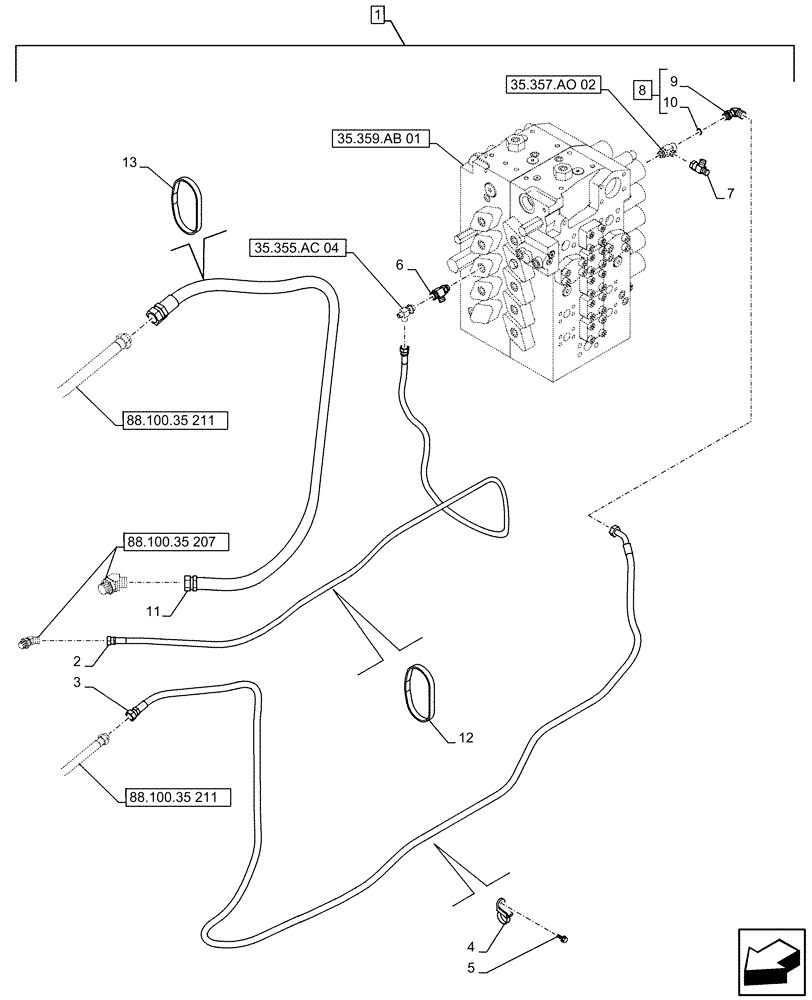

Схема запчастей Case CX490D LC - (88.100.35[212]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES
88.100.35 211
13
4
2
5
11
1
88.100.35 211
88.100.35 207
7
35.357.ao 02
9
8
3
35.355.ac 04
6
35.359.ab 01
10
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0TP704-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ35390

HYDRAULIC HOSE

2400mm, from Control Valve to Manifold Valve

1шт.

3

KHJ35400

HYDRAULIC HOSE

3600mm, from Control Valve to Arm Cylinder

1шт.

4

KHR2581

CLAMP

4шт.

5

KHJ1215

BOLT,Spcl

M8 x 25mm

4шт.

6

KHJ31880

TEE

G3/8"

1шт.

7

KHJ2234

TEE

1шт.

8

KHJ28720

ELBOW

ASSY, G3/8" x G1/2", Incl 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 8

1шт.

10

150031A1

O-RING,10mm ID x 24mm OD

1шт.

11

KTJ17210

HYDRAULIC HOSE

1640mm, from Control Valve to Manifold Valve

1шт.

12

150498A1

MOUNTING CLIP

297mm

1шт.

13

150496A1

MOUNTING CLIP

250mm

3шт.
