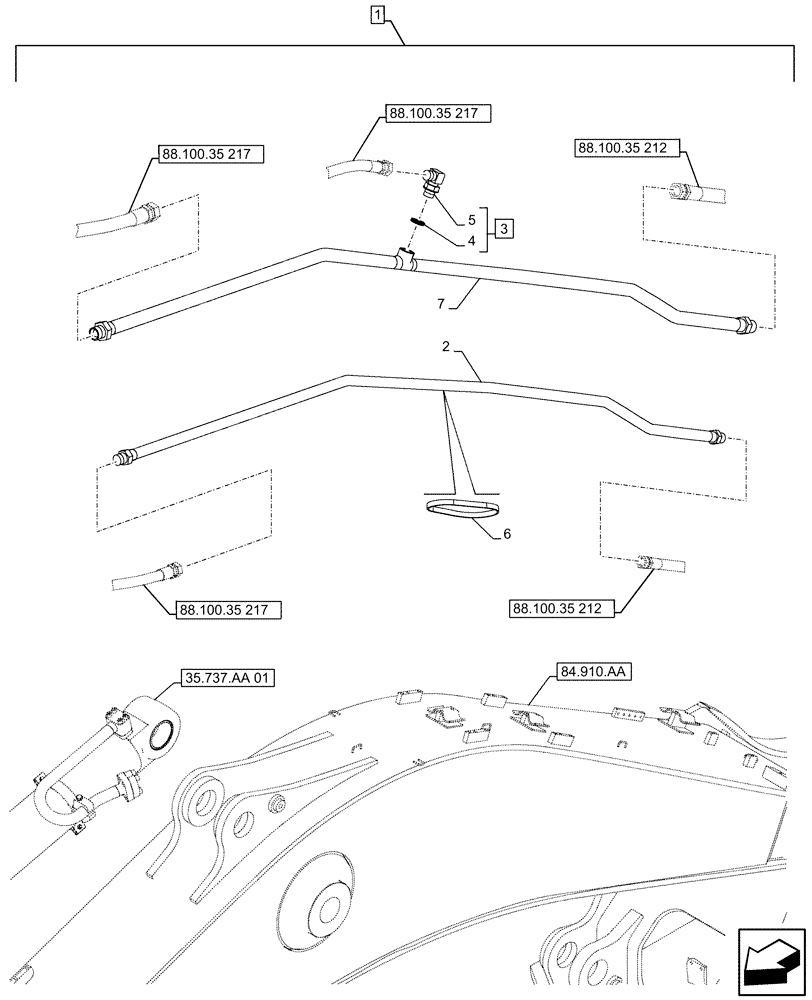

Запчасти Case CX490D LC (88.100.35[211]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

1

KG0TP704-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KTV20720

PIPE

from Safety Valve to Control Valve

1шт.

3

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

ASSY, G3/8" x G3/8", Incl 4, 5

1шт.

4

150031A1

O-RING,10mm ID x 24mm OD

1шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 3

1шт.

6

150071A1

MOUNTING CLIP

374mm

13шт.

7

KTV20730

PIPE

from Safety Valve to Control Valve

1шт.
