(88.100.35[210]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE

Запчасти Case CX490D LC (88.100.35[210]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

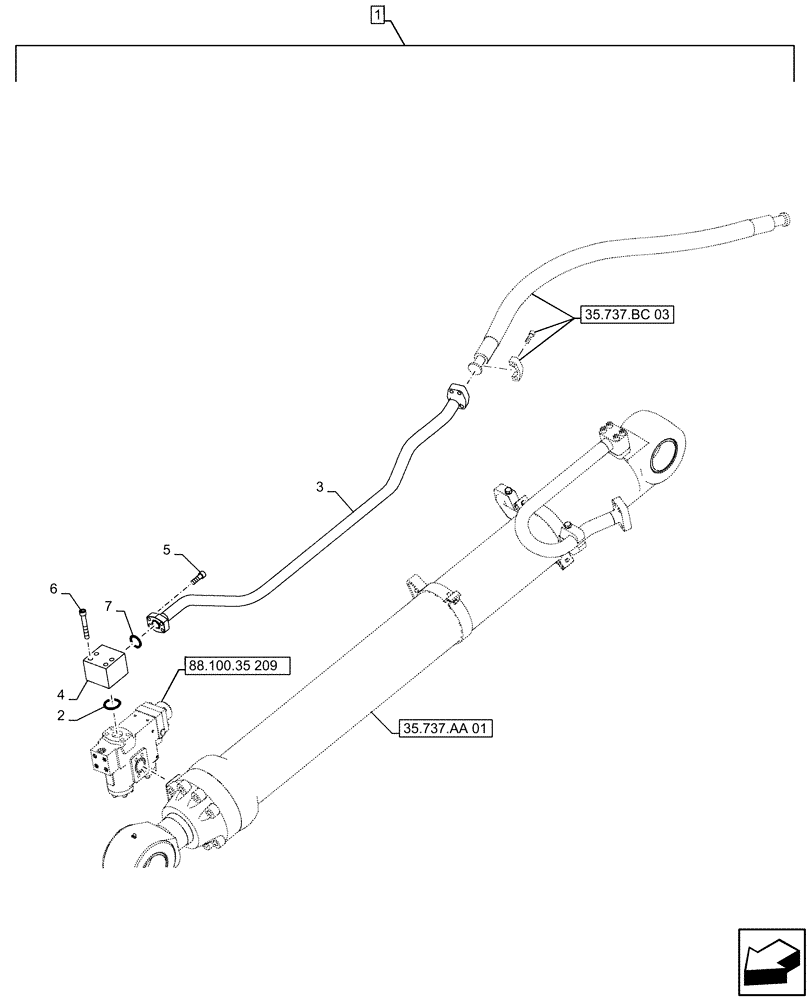

Схема запчастей Case CX490D LC - (88.100.35[210]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES
35.737.bc 03
35.737.aa 01
2
1
6
88.100.35 209
5
7
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0TP704-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

168211A1

O-RING

1шт.

3

KTV20750

PIPE

1шт.

4

KSV1606

MANIFOLD

1шт.

5

862-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

4шт.

6

162030A1

BOLT,Hex Skt Hd

4шт.

7

164450A1

O-RING

1шт.
