Запчасти Case CX490D LC (88.100.35[209]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE (88) - ACCESSORIES

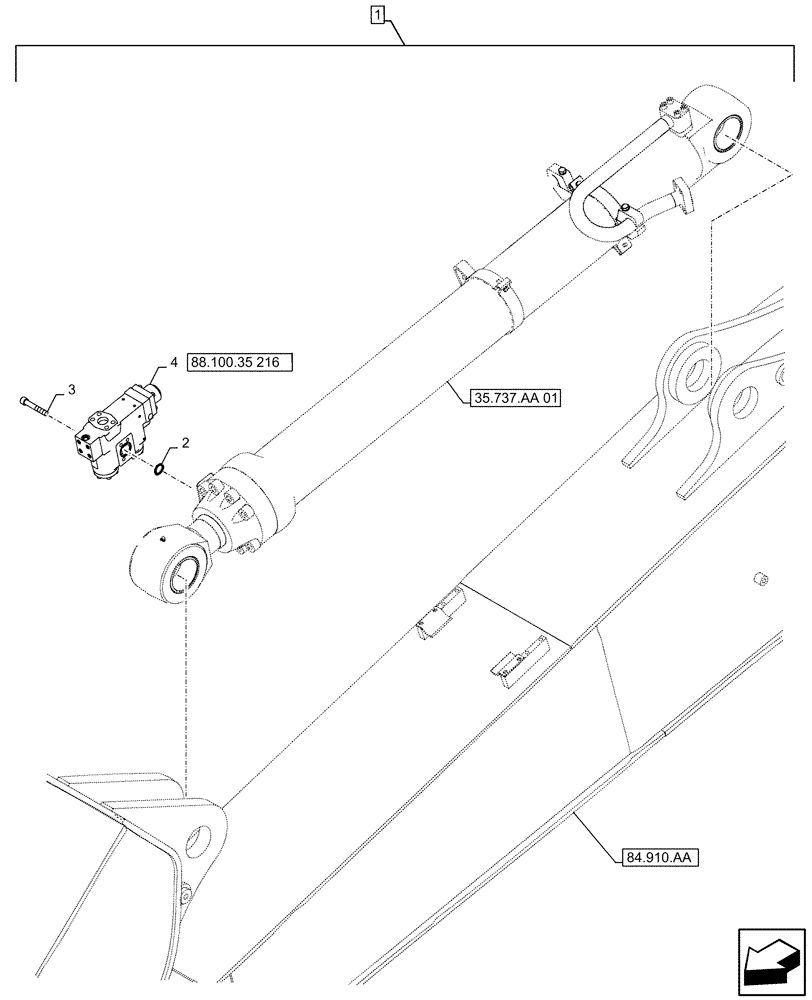

Схема запчастей Case CX490D LC - (88.100.35[209]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE (88) - ACCESSORIES
3
2
1
88.100.35 216
35.737.aa 01
4
84.910.aa

Артикул

Название

Примечание

Количество

1

KG0TP704-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

168211A1

O-RING

1шт.

3

162030A1

BOLT,Hex Skt Hd

4шт.

4

KTV1316

VALVE

ASSY

1шт.

Выбрано товаров: 5
