Запчасти Case CX490D LC (88.100.35[208]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

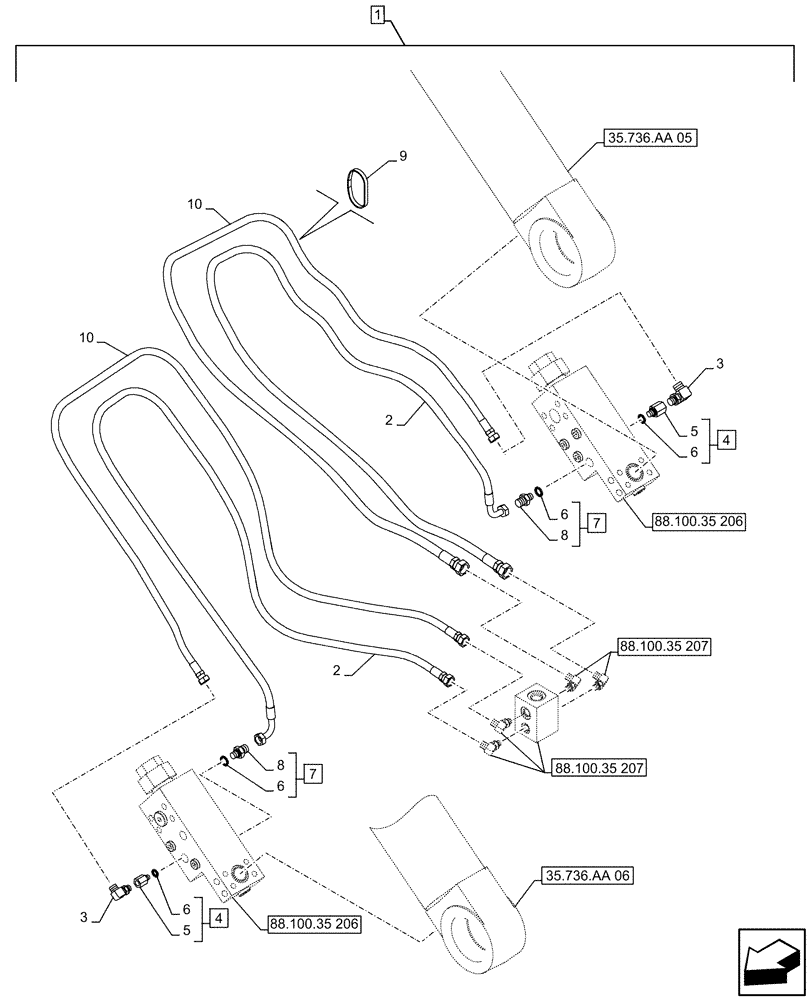

Схема запчастей Case CX490D LC - (88.100.35[208]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES
88.100.35 206
5
8
9
4
5
8
1
88.100.35 206
3
6
4
2
88.100.35 207
7
10
2
6
3
6
7
35.736.aa 05
6
35.736.aa 06
88.100.35 207
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0TP704-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ19100

HYDRAULIC HOSE

9mm ID x 2300mm

2шт.

3

157937A1

ELBOW

2шт.

4

KHJ1584

UNION

ASSY, Incl 5, 6 (Qty 2)

2шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 4

2шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

7

152747A1

ADAPTER

ASSY, Incl 8, 6 (Qty 2)

2шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

2шт.

9

150071A1

MOUNTING CLIP

374mm

14шт.

10

KHJ19060

HYDRAULIC HOSE

2300mm

2шт.
