(88.100.35[201]) - DIA KIT, FREE SWING, MOTO-REDUCTION GEAR, LOCKOUT SOLENOID VALVE, LINE

Запчасти Case CX490D LC (88.100.35[201]) - DIA KIT, FREE SWING, MOTO-REDUCTION GEAR, LOCKOUT SOLENOID VALVE, LINE (88) - ACCESSORIES

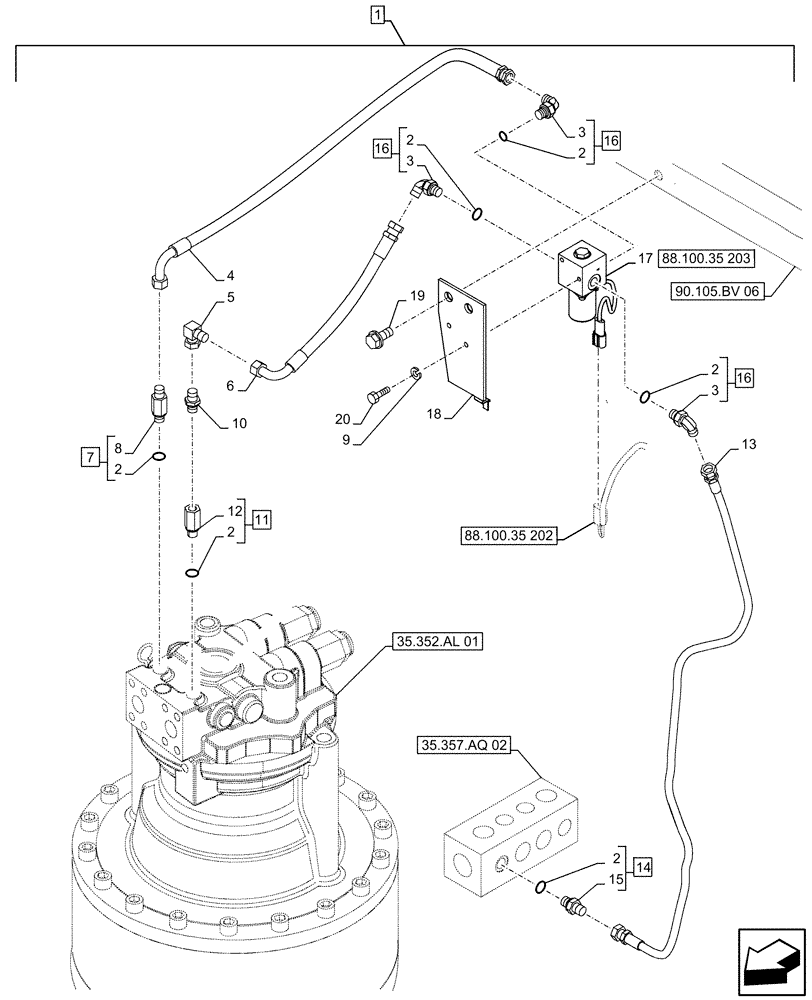

Схема запчастей Case CX490D LC - (88.100.35[201]) - DIA KIT, FREE SWING, MOTO-REDUCTION GEAR, LOCKOUT SOLENOID VALVE, LINE (88) - ACCESSORIES
88.100.35 203
2
12
16
16
19
2
4
3
14
2
13
7
2
11
15
20
90.105.bv 06
9
17
6
18
35.352.al 01
88.100.35 202
3
1
10
2
2
3
5
16
35.357.aq 02
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0TP665-00

CONSTRUCTION DIA

Free Swing Line, Incl 2 - 20

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

150960A1

O-RING,10.8mm ID x 2.4mm Width

6шт.

3

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 16

3шт.

4

KTJ14640

HYDRAULIC HOSE

From Moto-Reduction Gear to Valve

1шт.

5

163814A1

ELBOW

1шт.

6

KTJ12950

HOSE ASSY.

From Moto-Reduction Gear to Valve

1шт.

7

162554A1

FITTING

ASSY, Incl 2 (Qty 1), 8

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

9

183-106VR

SPRING WASHER

2шт.

10

KHJ36440

ORIFICE

1шт.

11

162525A1

STUD

ASSY, Incl 2 (Qty 1), 12

1шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.

13

KHJ2056

HYDRAULIC HOSE

From Valve to Manifold

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 2 (Qty 1), 15

1шт.

15

NSS

NOT SOLD SEPARAT

Fitting, Incl in 14

1шт.

16

KHJ28580

ELBOW

ASSY, Incl 2 (Qty 3), 3

3шт.

17

159205A1

VALVE

ASSY

1шт.

18

KTJ12970

BRACKET

1шт.

19

166352A1

BOLT

2шт.

20

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.
