(88.100.35[200]) - DIA KIT, CONTROL PATTERN SELECTION, DECAL

Запчасти Case CX490D LC (88.100.35[200]) - DIA KIT, CONTROL PATTERN SELECTION, DECAL (88) - ACCESSORIES

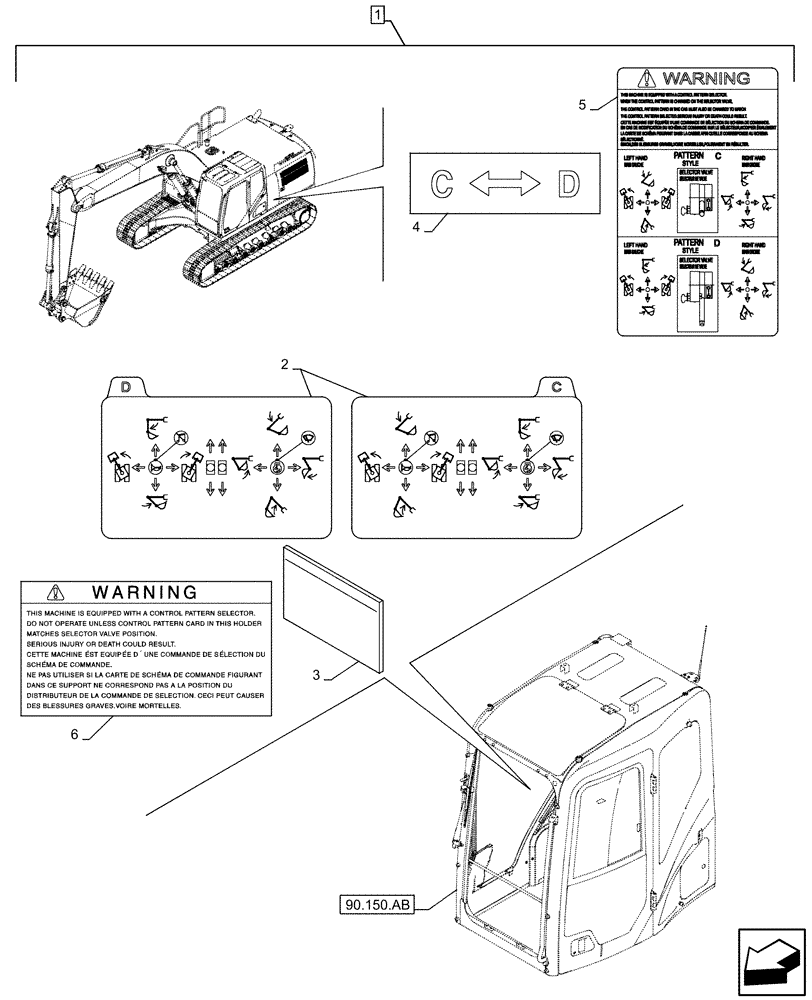

Схема запчастей Case CX490D LC - (88.100.35[200]) - DIA KIT, CONTROL PATTERN SELECTION, DECAL (88) - ACCESSORIES
3
5
2
1
4
6
90.150.ab
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0TP649-00

CONSTRUCTION DIA

2 Way Selector Valve Kit, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHP27000

DECAL

Operation

1шт.

3

165777A1

HOLDER

Operation Label

1шт.

4

KHP1757

DECAL

Instruction

1шт.

5

KHP20620

LABEL

Warning

1шт.

6

KHP18200

DECAL

Warning

1шт.
