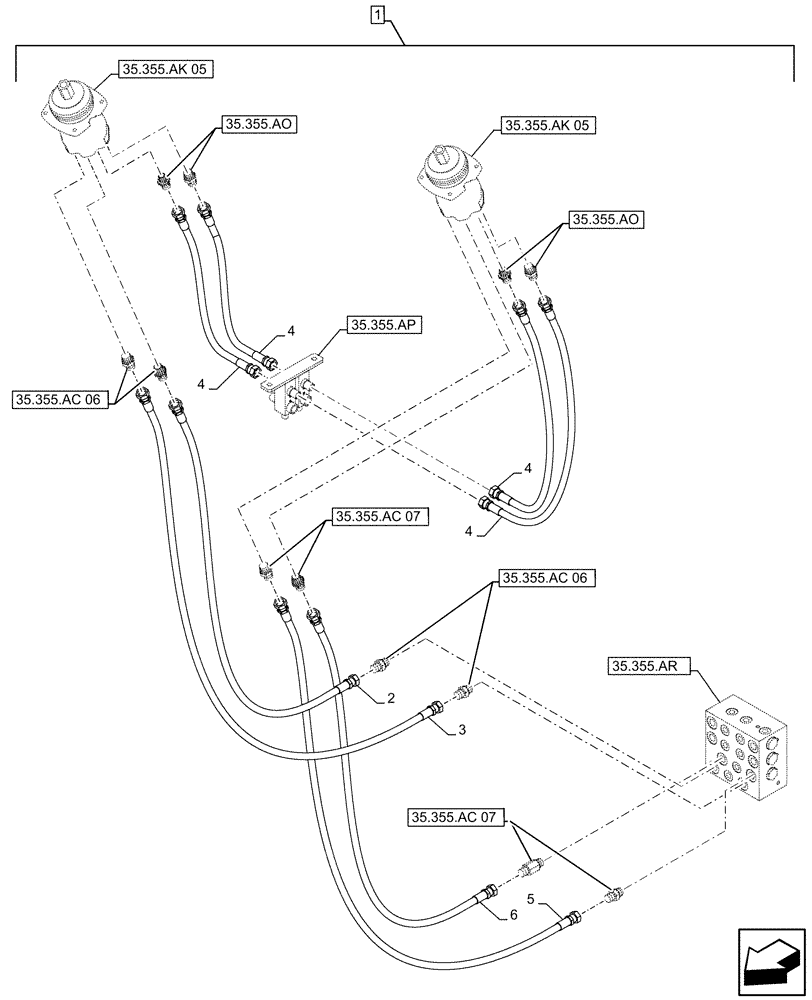

Запчасти Case CX490D LC (88.100.35[199]) - DIA KIT, CONTROL PATTERN SELECTION, VALVE, JOYSTICK, HYDRAULIC LINE (88) - ACCESSORIES

1

KG0TP649-00

CONSTRUCTION DIA

2 Way Selector Valve Kit, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

159212A1

HYDRAULIC HOSE,9.50 mm ID x 2100.00 mm

9mm ID x 2100mm, From Valve Remote Control to Cushion Valve

1шт.

3

KHJ22430

HYDRAULIC HOSE

9mm ID x 2050mm, From Valve Remote Control to Cushion Valve

1шт.

4

159213A1

HYDRAULIC HOSE

9mm ID x 1150mm, From Valve Remote Control to Hydraulic Manifold

4шт.

5

KTJ1633

HYDRAULIC HOSE

9mm ID x 1950mm, From Valve Remote Control to Cushion Valve

1шт.

6

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

9mm ID x 1950mm, From Valve Remote Control to Cushion Valve

1шт.
