(88.100.35[198]) - DIA KIT, CONTROL PATTERN SELECTION, VALVE, SELECTOR, HYDRAULIC LINE

Запчасти Case CX490D LC (88.100.35[198]) - DIA KIT, CONTROL PATTERN SELECTION, VALVE, SELECTOR, HYDRAULIC LINE (88) - ACCESSORIES

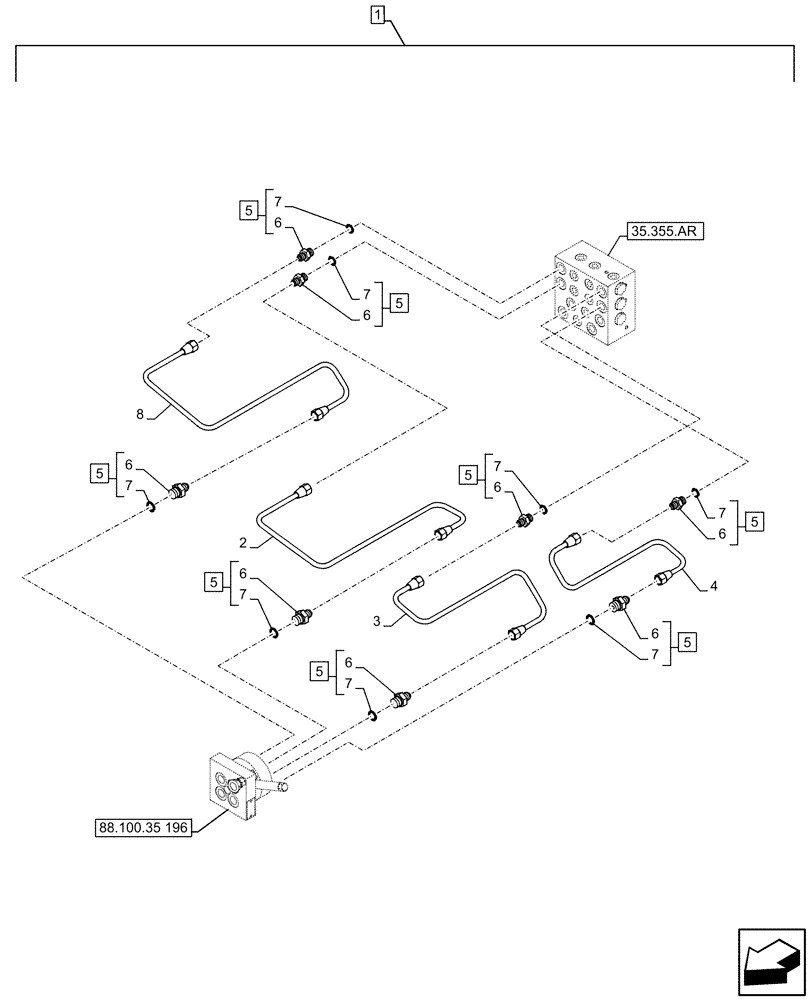

Схема запчастей Case CX490D LC - (88.100.35[198]) - DIA KIT, CONTROL PATTERN SELECTION, VALVE, SELECTOR, HYDRAULIC LINE (88) - ACCESSORIES
88.100.35 196
7
7
6
5
7
35.355.ar
5
5
6
7
6
7
4
8
1
3
6
6
2
5
6
6
6
5
7
7
5
7
5
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0TP649-00

CONSTRUCTION DIA

2 Way Selector Valve Kit, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ31970

PIPE

1шт.

3

KHJ32490

PIPE

1шт.

4

KHJ23370

HYD TUBE

1шт.

5

KHJ1821

NIPPLE, LUBE

ASSY, Incl 6, 7

8шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

8шт.

7

154475A1

O-RING

8шт.

8

KHJ31960

PIPE

1шт.
