Запчасти Case CX490D LC (88.100.35[197]) - DIA KIT, CONTROL PATTERN SELECTION, VALVE, SELECTOR, COMPONENTS (88) - ACCESSORIES

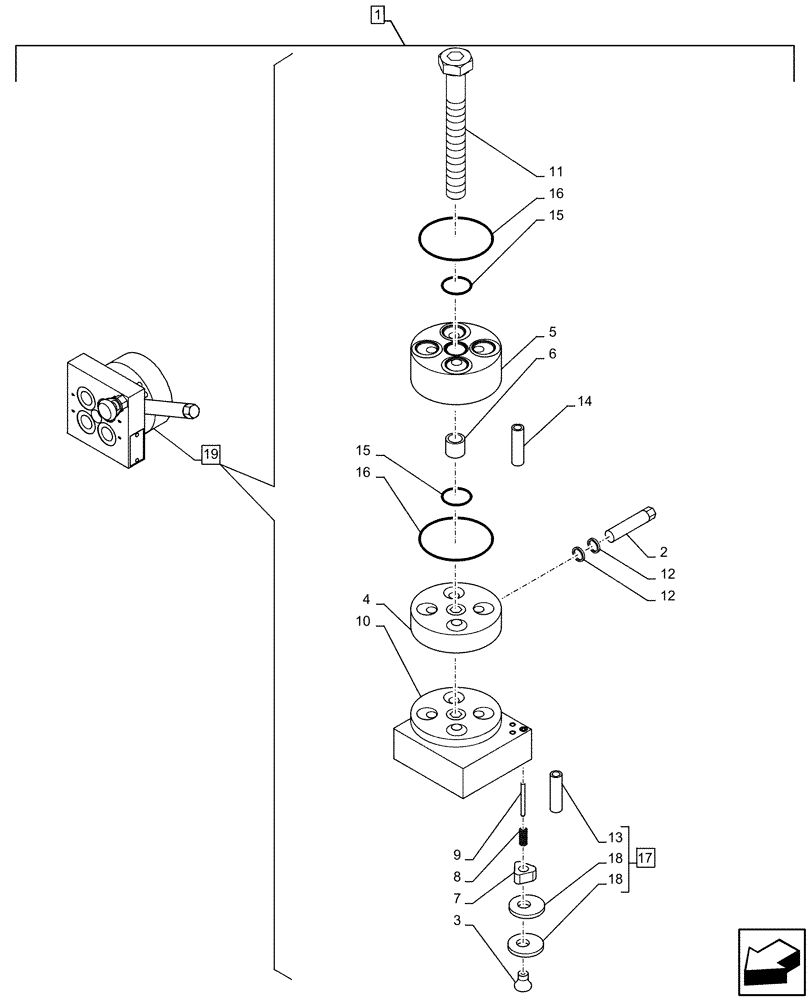

Схема запчастей Case CX490D LC - (88.100.35[197]) - DIA KIT, CONTROL PATTERN SELECTION, VALVE, SELECTOR, COMPONENTS (88) - ACCESSORIES
13
12
17
3
14
18
18
15
6
16
7
11
19
9
1
10
15
16
8
2
12
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0TP649-00

CONSTRUCTION DIA

2 Way Selector Valve Kit, Incl 2 - 19

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

LF000570

LEVER

1шт.

3

LP000220

KNOB

1шт.

4

NSS

NOT SOLD SEPARAT

Body, Incl in 19

1шт.

5

LR014550

PLATE

1шт.

6

NSS

NOT SOLD SEPARAT

Ring, Incl in 19

1шт.

7

LH004670

SLEEVE

1шт.

8

LG005840

COMPRESSION SPRING

1шт.

9

LA010670

DOWEL

1шт.

10

LR017570

PLATE

1шт.

11

LA010680

BOLT,Hex Skt Hd

1шт.

12

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

13

NSS

NOT SOLD SEPARAT

Pin, Incl in 17

1шт.

14

LA010690

DOWEL

1шт.

15

LE00852

O-RING

2шт.

16

LE01128

O-RING

2шт.

17

LG005850

STOP LOCK

ASSY, Incl 13, 18

1шт.

18

NSS

NOT SOLD SEPARAT

Stopper, Incl in 17

2шт.

19

KHJ12080

CONTROL BLOCK

ASSY, Incl 2 - 18

1шт.
