(88.100.35[196]) - DIA KIT, CONTROL PATTERN SELECTION, VALVE, SELECTOR

Запчасти Case CX490D LC (88.100.35[196]) - DIA KIT, CONTROL PATTERN SELECTION, VALVE, SELECTOR (88) - ACCESSORIES

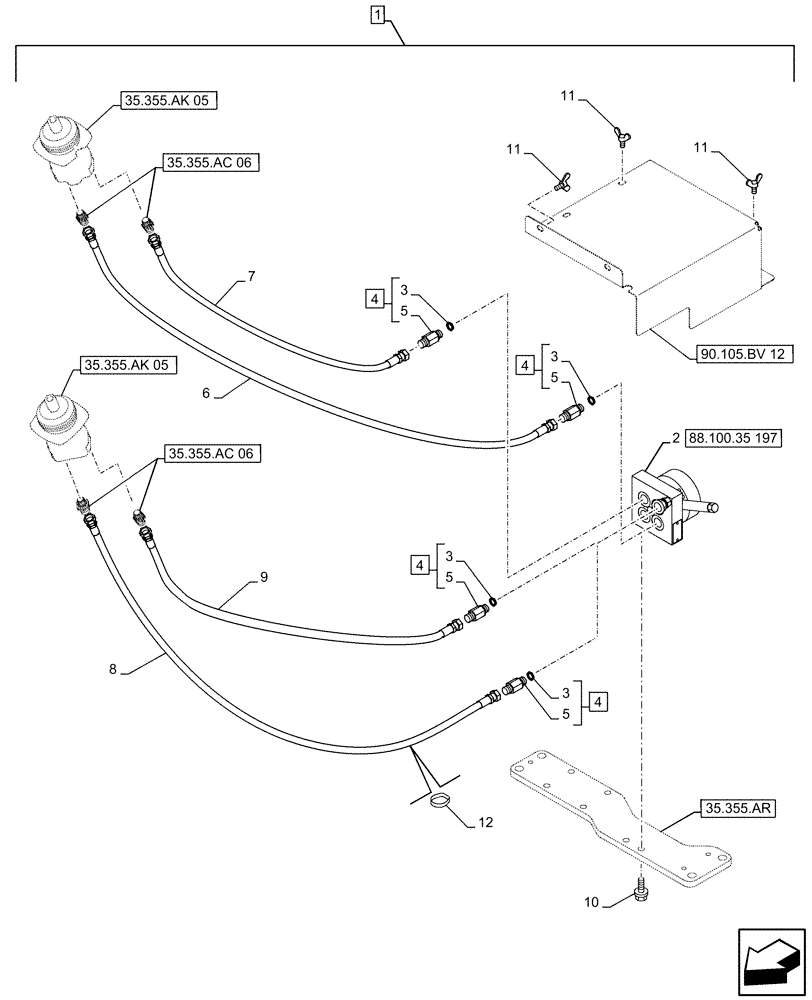

Схема запчастей Case CX490D LC - (88.100.35[196]) - DIA KIT, CONTROL PATTERN SELECTION, VALVE, SELECTOR (88) - ACCESSORIES
11
5
8
35.355.ac 06
9
4
11
5
4
3
35.355.ac 06
2
5
35.355.ar
4
6
10
3
90.105.bv 12
11
35.355.ak 05
3
7
88.100.35 197
4
35.355.ak 05
12
3
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0TP649-00

CONSTRUCTION DIA

2 Way Selector Valve Kit, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ12080

CONTROL BLOCK

ASSY

1шт.

3

154475A1

O-RING

4шт.

4

159226A1

ADAPTER

ASSY, Incl 3, 5

4шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

4шт.

6

159211A1

HYDRAULIC HOSE

9mm ID x 2000mm

1шт.

7

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

9mm IDX1950

1шт.

8

KRJ4381

HYDRAULIC HOSE,9.50 mm ID x 1800.00 mm

1800mm

1шт.

9

KHJ21490

HYDRAULIC HOSE

9mm ID x 1750mm

1шт.

10

166347A1

BOLT,Sems, M10 x 30mm

M10 x 30mm

2шт.

11

KMN1330

BOLT

6шт.

12

150498A1

MOUNTING CLIP

297mm

5шт.
