(88.100.35[071]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE

Запчасти Case CX490D LC (88.100.35[071]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

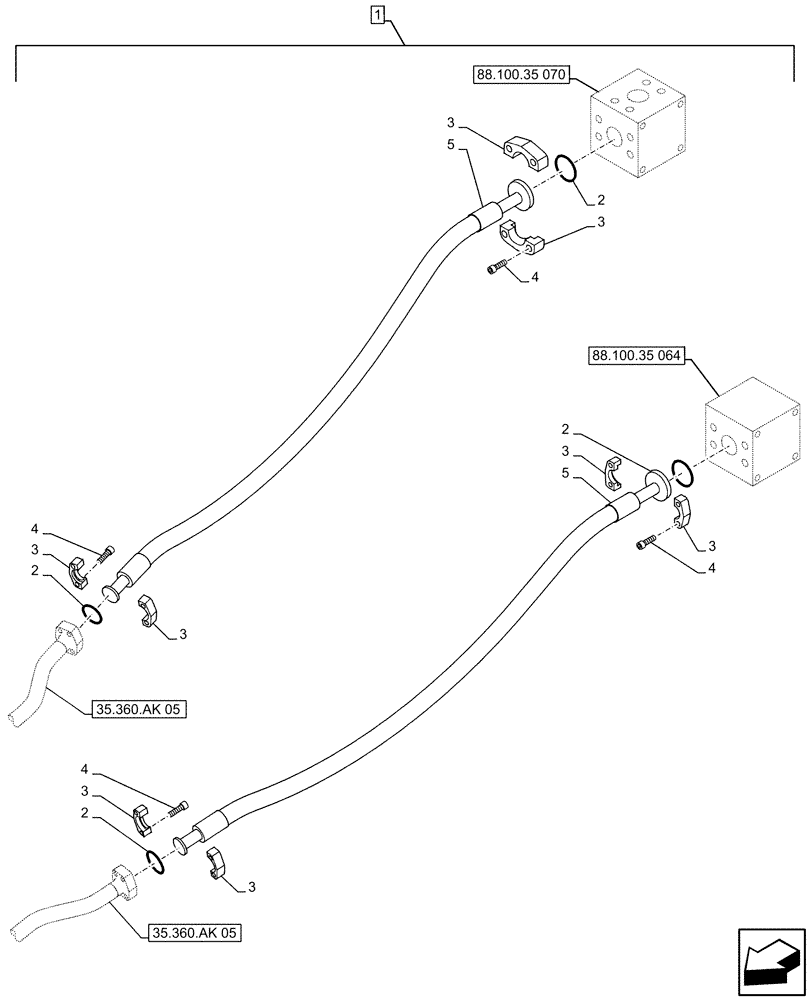

Схема запчастей Case CX490D LC - (88.100.35[071]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES
3
4
4
2
3
2
3
2
4
5
3
1
88.100.35 064
35.360.ak 05
88.100.35 070
35.360.ak 05
3
3
2
3
4
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0TP659-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

164450A1

O-RING

4шт.

3

150124A1

FLANGE

8шт.

4

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

16шт.

5

KTJ12390

HYDRAULIC HOSE

32mm ID x 1850mm, Stop Valve to Boom Line

2шт.
