(88.100.35[070]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE

Запчасти Case CX490D LC (88.100.35[070]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE (88) - ACCESSORIES

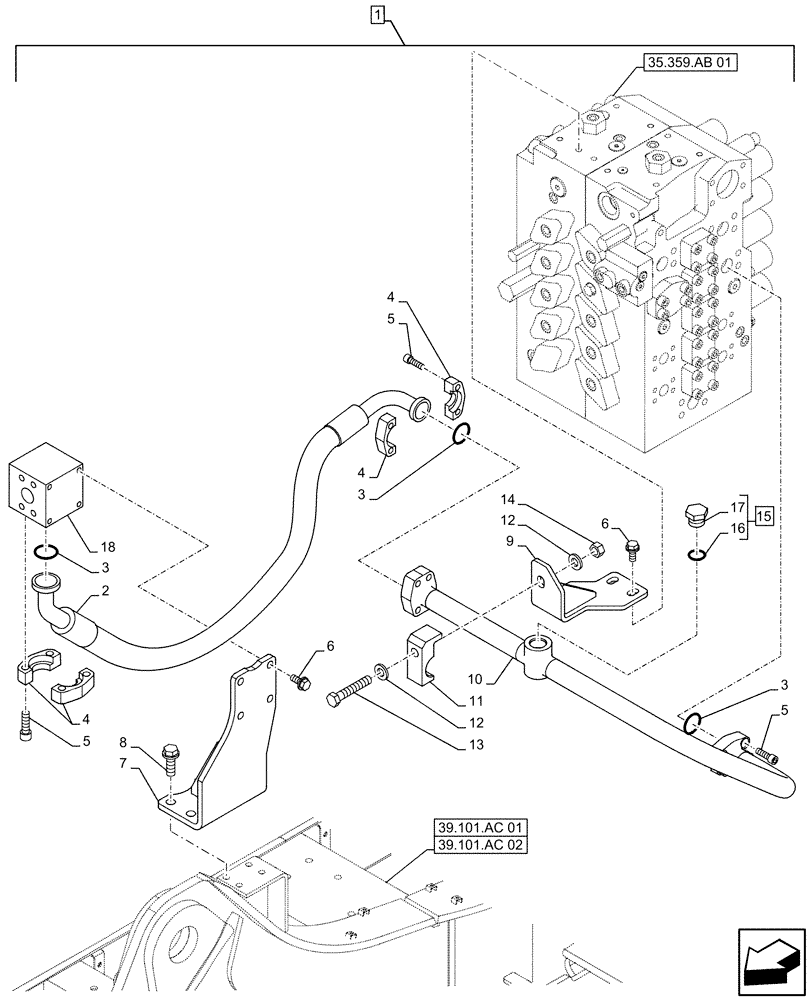

Схема запчастей Case CX490D LC - (88.100.35[070]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE (88) - ACCESSORIES
1
8
10
39.101.ac 01
3
18
15
6
14
7
5
16
2
11
4
5
4
39.101.ac 02
35.359.ab 01
6
17
9
4
3
5
12
3
13
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0TP659-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KTJ17690

HYDRAULIC HOSE

32mm ID x 730mm

1шт.

3

164450A1

O-RING

3шт.

4

150124A1

FLANGE

4шт.

5

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

12шт.

6

166352A1

BOLT

M12 x 30mm

6шт.

7

KTJ16100

BRACKET

1шт.

8

165929A1

BOLT,Sems, M16

M16 x 50mm

4шт.

9

KTJ17700

BRACKET

1шт.

10

KTJ17710

PIPE

1шт.

11

KTV1209

CLAMP

1шт.

12

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

M16

2шт.

13

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

1шт.

14

829-1416

NUT,M16, Cl 10

1шт.

15

162659A1

PLUG

ASSY, Incl 16, 17

1шт.

16

152211A1

O-RING

1шт.

17

NSS

NOT SOLD SEPARAT

Plug, Incl in 15

1шт.

18

163436A1

MANIFOLD

1шт.
