Запчасти Case CX490D LC (88.100.35[064]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE (88) - ACCESSORIES

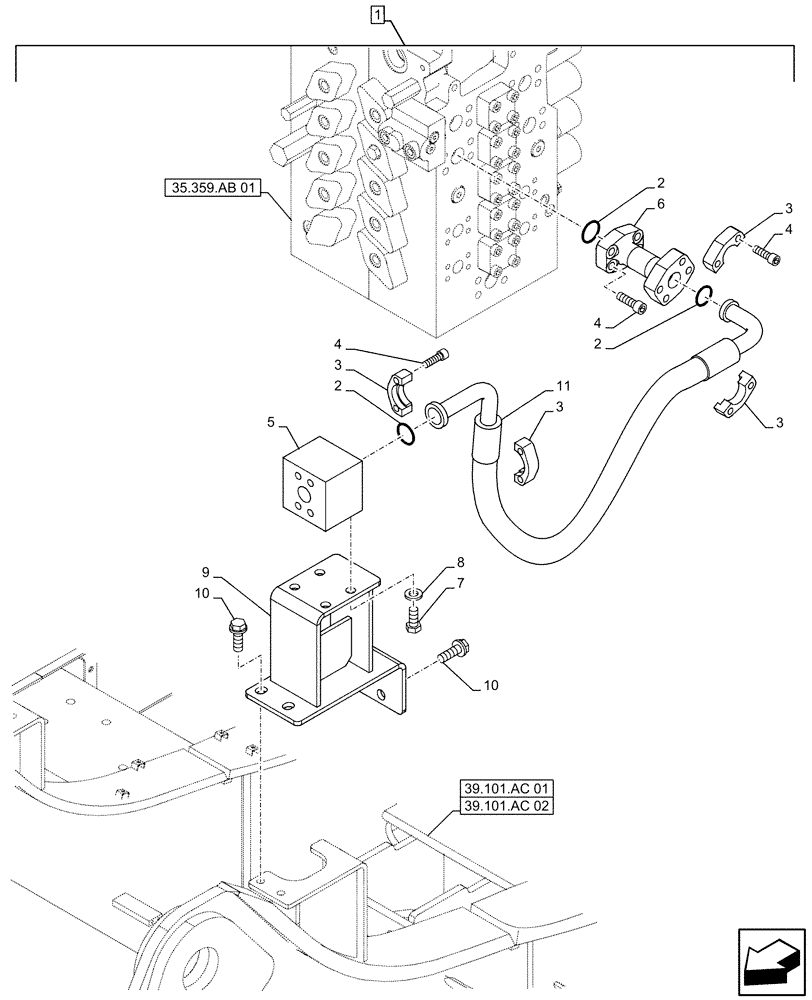

Схема запчастей Case CX490D LC - (88.100.35[064]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE (88) - ACCESSORIES
3
4
39.101.ac 01
4
11
2
6
2
10
2
3
3
1
10
8
9
5
7
4
39.101.ac 02
35.359.ab 01
3

Артикул

Название

Примечание

Количество

1

KG0TP659-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

164450A1

O-RING

3шт.

3

150124A1

FLANGE

4шт.

4

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

12шт.

5

KSJ2830

MANIFOLD VALVE

1шт.

6

KTJ17110

PIPE

1шт.

7

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

8

157548A1

WASHER

M16

4шт.

9

KTJ16620

BRACKET

1шт.

10

165929A1

BOLT,Sems, M16

M16 x 50mm

4шт.

11

KTJ16900

HYDRAULIC HOSE

32mm ID x 980mm

1шт.

Выбрано товаров: 12
