(88.100.35[063]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE

Запчасти Case CX490D LC (88.100.35[063]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE (88) - ACCESSORIES

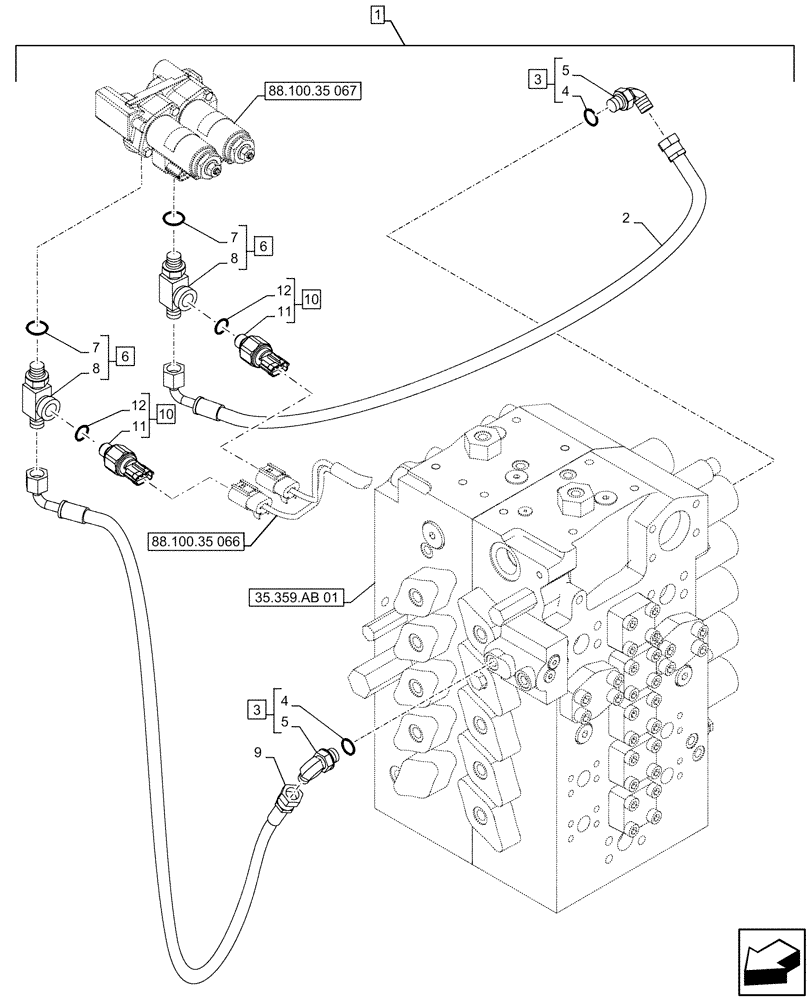

Схема запчастей Case CX490D LC - (88.100.35[063]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE (88) - ACCESSORIES
2
6
3
88.100.35 066
9
12
11
5
8
35.359.ab 01
1
10
3
88.100.35 067
11
7
4
7
4
5
10
12
8
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0TP659-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ11500

HYDRAULIC HOSE,6.35 mm ID x 3600.00 mm

6mm ID x 3600mm

1шт.

3

KHJ28690

ELBOW

ASSY, G3/8" x G1/4", Incl 4, 5

2шт.

4

150031A1

O-RING,10mm ID x 24mm OD

2шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 3

2шт.

6

167666A1

FITTING

ASSY, G1/4" x G1/4" x G1/4", Incl 7, 8

2шт.

7

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

8

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 6

2шт.

9

KHJ12230

HYDRAULIC HOSE

6mm ID x 3450mm

1шт.

10

KHR26940

SENSOR

ASSY, Incl 11, 12

2шт.

11

NSS

NOT SOLD SEPARAT

Pressure Sensor, Incl in 10

2шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.
