Запчасти Case CX490D LC (88.100.35[062]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE (88) - ACCESSORIES

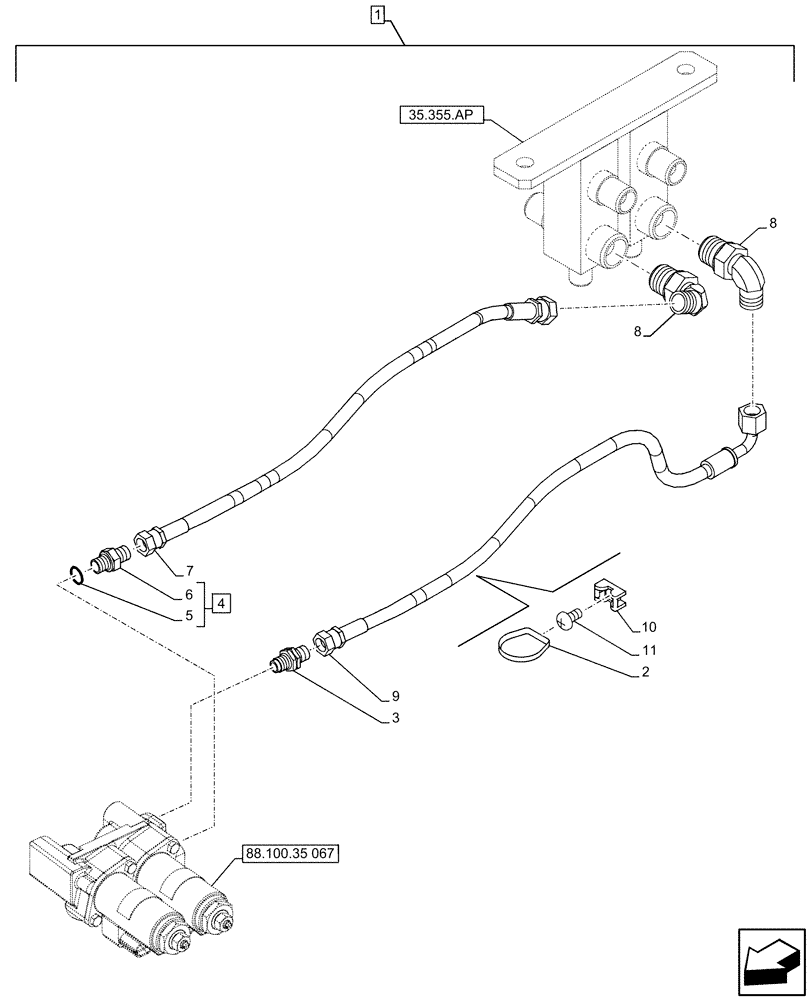

Схема запчастей Case CX490D LC - (88.100.35[062]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE (88) - ACCESSORIES
2
5
4
88.100.35 067
8
10
11
9
1
6
35.355.ap
8
7
3

Артикул

Название

Примечание

Количество

1

KG0TP659-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

150496A1

MOUNTING CLIP

250mm

4шт.

3

161841A1

HYD CONNECTOR

G1/4" x G1/4"

1шт.

4

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 5, 6

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

6

NSS

NOT SOLD SEPARAT

Adapter, Incl in 4

1шт.

7

KHJ2051

HOSE

Proportional Control Valve Port T to Hydraulic Manifold Port T5, 6mm ID x 1050mm

1шт.

8

KHJ28580

ELBOW

2шт.

9

KHJ2093

HOSE

Proportional Control Valve Port P to Hydraulic Manifold Port P5, 6mm ID x 1150mm

1шт.

10

150860A1

COLLAR

4шт.

11

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

M6 x 8mm

4шт.

Выбрано товаров: 12
