(88.100.35[011]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=3.4M)

Запчасти Case CX490D LC (88.100.35[011]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=3.4M) (88) - ACCESSORIES

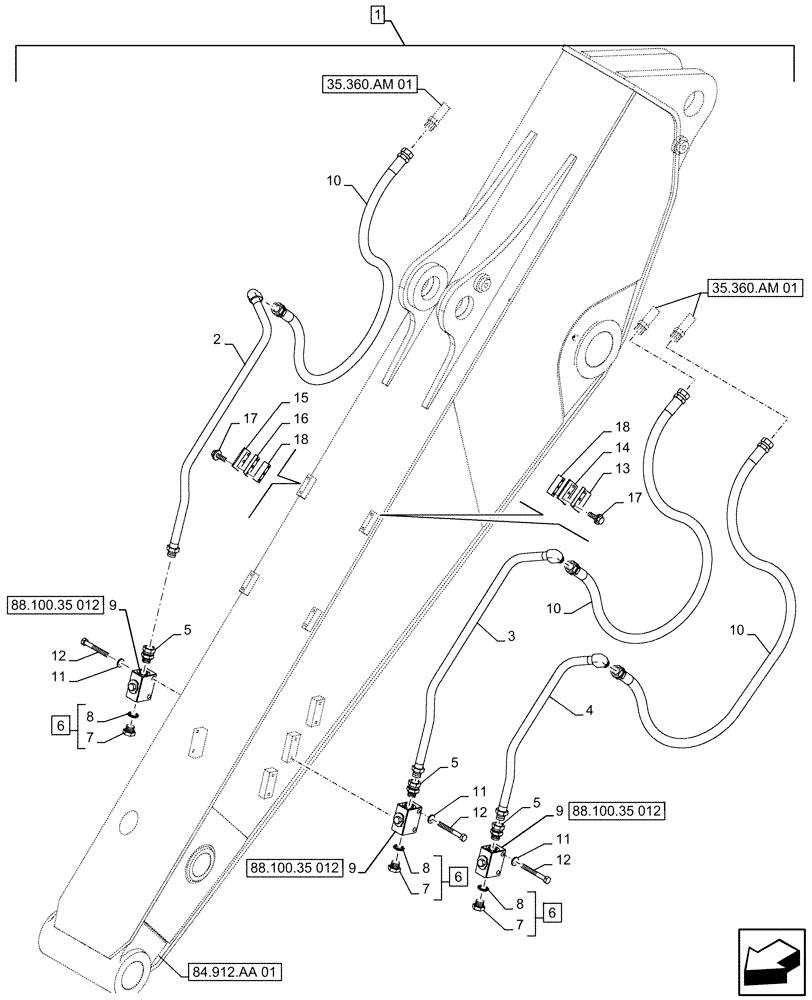

Схема запчастей Case CX490D LC - (88.100.35[011]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=3.4M) (88) - ACCESSORIES
3
6
35.360.am 01
17
12
7
11
8
8
4
88.100.35 012
11
12
16
5
12
14
88.100.35 012
6
17
9
8
84.912.aa 01
2
7
9
11
7
18
5
35.360.am 01
13
9
88.100.35 012
5
10
6
18
1
10
15
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0TP685-00

CONSTRUCTION DIA

Second Option Line, Standard Arm, Incl 2 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KTV13140

HYD TUBE,27.20mm OD x 1492.10mm L

1шт.

3

KTV13150

HYD TUBE,27.20mm OD x 1492.10mm L

1шт.

4

KTV13160

HYD TUBE,27.20mm OD x 1237.80mm L

1шт.

5

167248A1

FITTING

3шт.

6

152924A1

PLUG

ASSY, Incl 7, 8

3шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 6

3шт.

8

154503A1

O-RING

3шт.

9

KHV10710

VALVE

ASSY

3шт.

10

KTV13190

HYDRAULIC HOSE,19.00 mm ID x 170.00 mm

to Bucket Valve

3шт.

11

150811A1

WASHER

6шт.

12

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

6шт.

13

KHV10450

COLLAR CLAMP

2шт.

14

KHV11410

PIPE CLAMP

2шт.

15

KHV10460

COLLAR CLAMP

2шт.

16

KHV11420

PIPE CLAMP

2шт.

17

166352A1

BOLT

12шт.

18

KHV10960

BAR

4шт.
