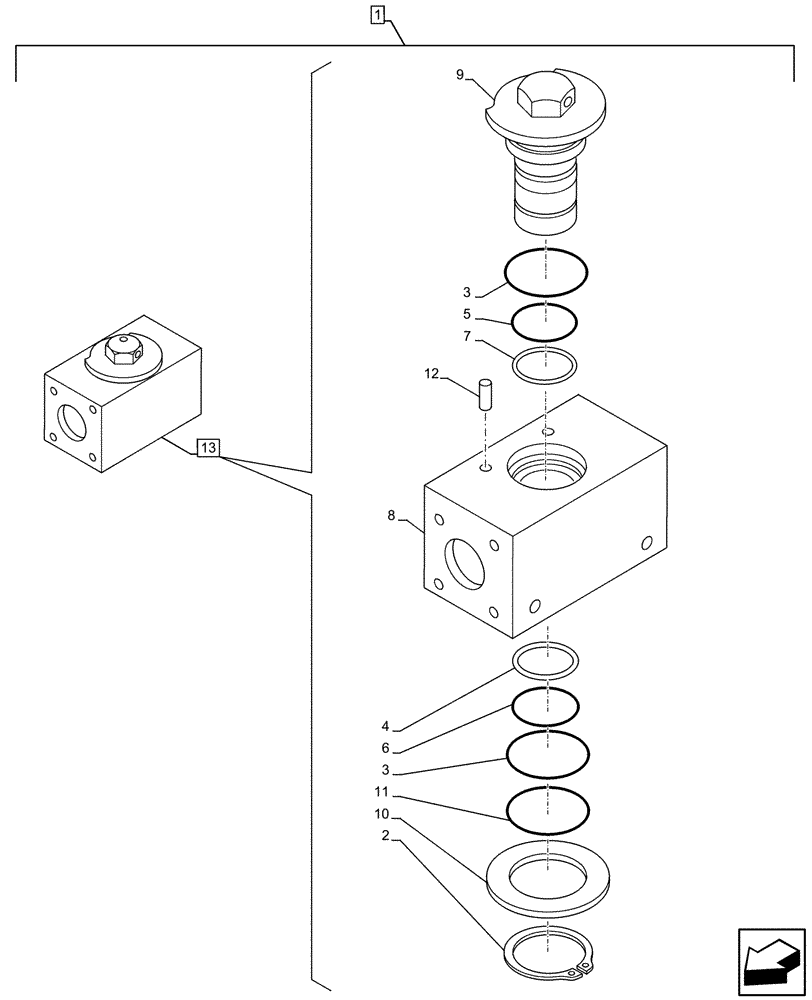

Запчасти Case CX490D LC (88.100.35[006]) - DIA KIT, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, STOP, VALVE, COMPONENTS (88) - ACCESSORIES

1

KG0TP678-00

CONSTRUCTION DIA

Option Line, Bar Base, Standard Arm, Incl 2 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

800-1150

SNAP RING,M50, Ext

1шт.

3

154609A1

O-RING

2шт.

4

154047A1

BACK-UP RING

1шт.

5

154589A1

O-RING

2шт.

6

154641A1

O-RING

1шт.

7

154064A1

BACK-UP RING

1шт.

8

NSS

NOT SOLD SEPARAT

Body, Incl in 13

1шт.

9

NSS

NOT SOLD SEPARAT

Valve, Incl in 13

1шт.

10

NSS

NOT SOLD SEPARAT

Seat, Incl in 13

1шт.

11

154625A1

O-RING

1шт.

12

338W060Z016B

PIN

2шт.

13

KHV12250

SHUT-OFF VALVE

ASSY, Incl 2 - 12

1шт.
