(88.100.35[003]) - DIA KIT, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM, SHORT (L=2.53M)

Запчасти Case CX490D LC (88.100.35[003]) - DIA KIT, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM, SHORT (L=2.53M) (88) - ACCESSORIES

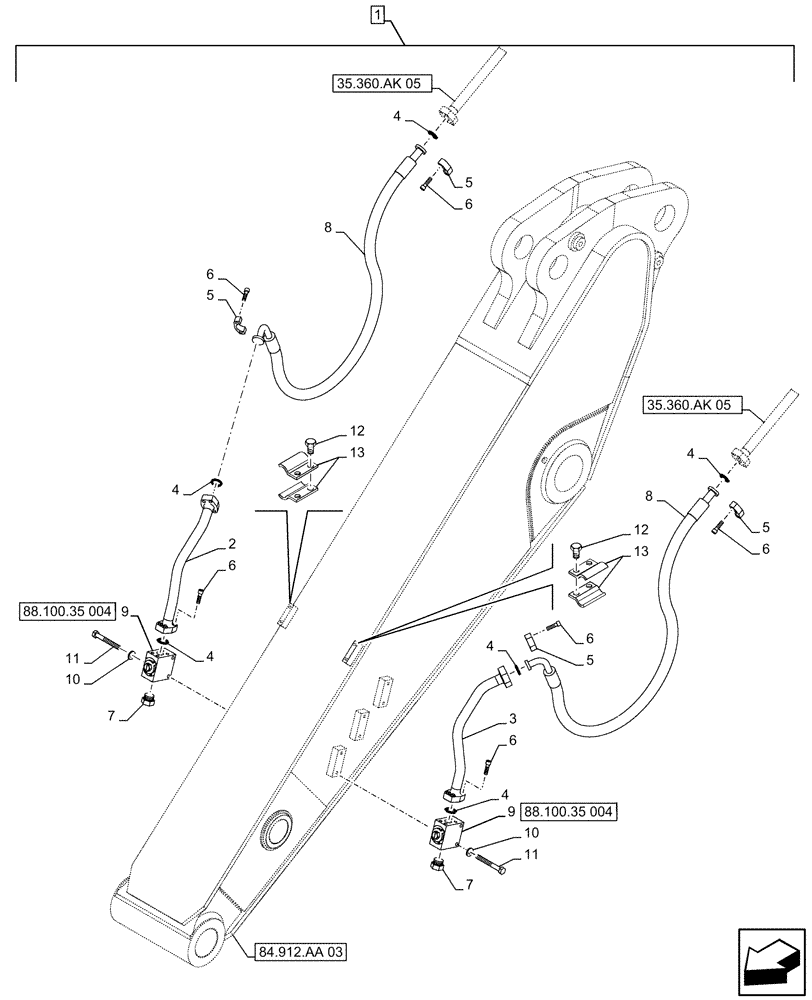

Схема запчастей Case CX490D LC - (88.100.35[003]) - DIA KIT, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM, SHORT (L=2.53M) (88) - ACCESSORIES
5
4
6
13
13
6
35.360.ak 05
4
12
6
2
1
4
9
88.100.35 004
35.360.ak 05
11
6
8
7
5
4
12
84.912.aa 03
3
7
10
9
8
4
5
5
4
10
88.100.35 004
11
6
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0TP677-00

CONSTRUCTION DIA

Option Line, Bar Base, Short Arm, Incl 2 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KTV20370

PIPE

RH

1шт.

3

KTV20360

PIPE

LH

1шт.

4

164450A1

O-RING

6шт.

5

150124A1

FLANGE

8шт.

6

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

24шт.

7

162335A1

PLUG

2шт.

8

KBV16090

HYDRAULIC HOSE,31.80 mm ID x 2150.00 mm

2150mm, to Main Control Valve

2шт.

9

KHV12250

SHUT-OFF VALVE

ASSY

2шт.

10

150811A1

WASHER

4шт.

11

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

4шт.

12

166352A1

BOLT

4шт.

13

KHV11060

COLLAR CLAMP

4шт.
