Запчасти Case CX490D LC (35.738.AE[05]) - VAR - 461544 - BUCKET CYLINDER, LINES (ARM L=4.85M) (35) - HYDRAULIC SYSTEMS

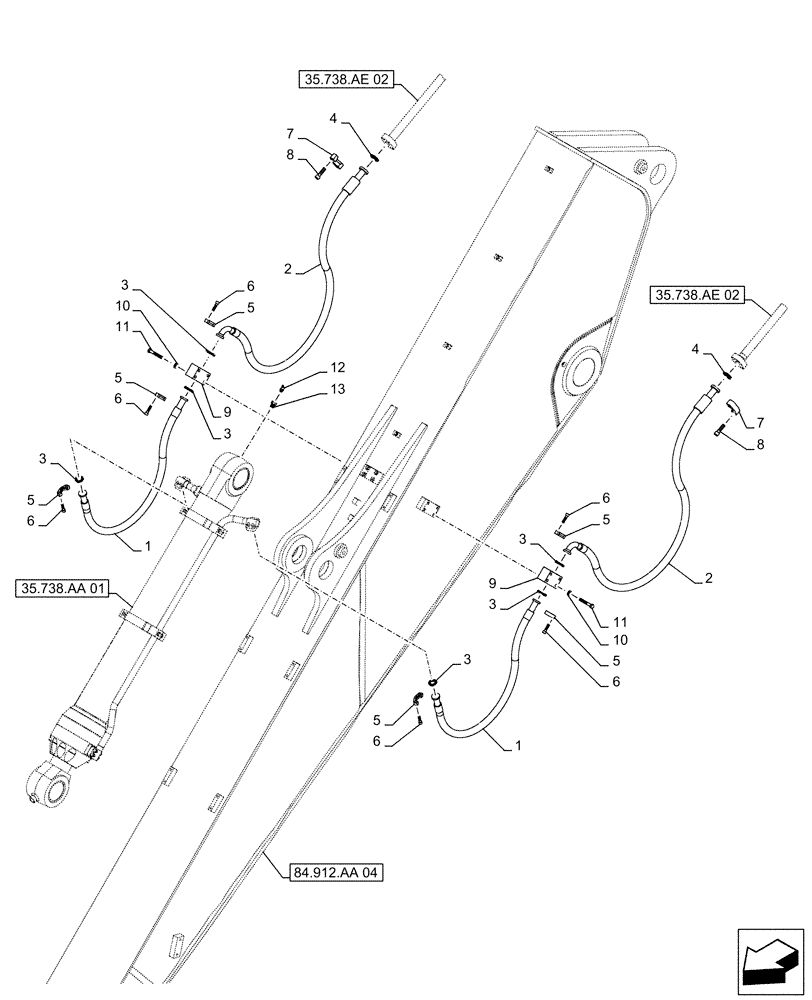

Схема запчастей Case CX490D LC - (35.738.AE[05]) - VAR - 461544 - BUCKET CYLINDER, LINES (ARM L=4.85M) (35) - HYDRAULIC SYSTEMS
35.738.aa 01
3
6
5
3
8
5
6
4
8
12
1
11
2
1
6
6
4
10
3
5
10
9
6
7
13
2
5
9
5
3
6
3
11
5
7
3
35.738.ae 02
35.738.ae 02
84.912.aa 04

Артикул

Название

Примечание

Количество

1

KSV1191

HYDRAULIC HOSE,25.40 mm ID x 1400.00 mm

1400mm, from Bucket Cylinder to Main Control Valve

2шт.

2

KTV21500

HYDRAULIC HOSE

25mm ID x 2100mm, from Bucket Cylinder to Main Control Valve

2шт.

3

162246A1

O-RING

6шт.

4

153626A1

O-RING

2шт.

5

153459A1

FLANGE

12шт.

6

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

24шт.

7

150124A1

FLANGE

4шт.

8

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

M10 x 50mm

8шт.

9

KSV1133

MANIFOLD VALVE

2шт.

10

150811A1

WASHER

8шт.

11

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

M12 x 80mm

8шт.

12

153631A1

LUBE NIPPLE,1/8"-27 NPT

1шт.

13

152191A1

BUSHING

1шт.

Выбрано товаров: 13
