Запчасти Case CX490D LC (35.738.AE[03]) - VAR - 461549 - BUCKET CYLINDER, LINES (ARM L=3.4M) (35) - HYDRAULIC SYSTEMS

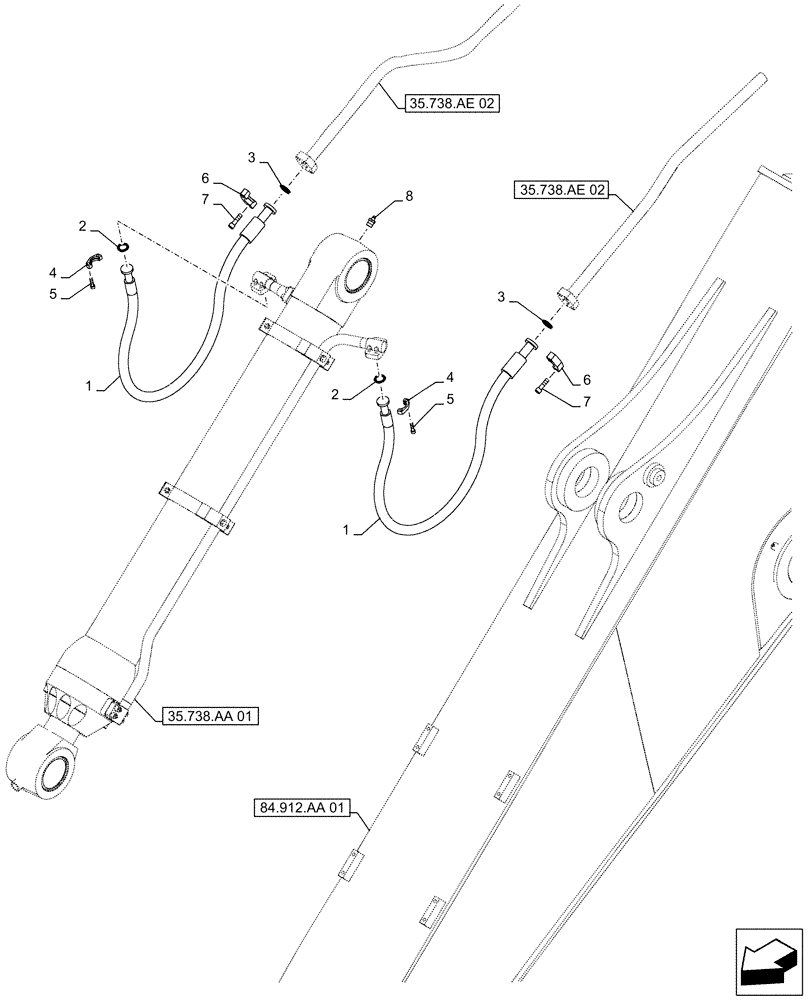

Схема запчастей Case CX490D LC - (35.738.AE[03]) - VAR - 461549 - BUCKET CYLINDER, LINES (ARM L=3.4M) (35) - HYDRAULIC SYSTEMS
35.738.aa 01
3
1
4
7
2
4
6
5
3
7
5
8
6
1
2
35.738.ae 02
35.738.ae 02
84.912.aa 01

Артикул

Название

Примечание

Количество

1

KTV19950

HYDRAULIC HOSE

25mm ID x 1750mm, from Main Control Valve to Main Control Valve

2шт.

2

162246A1

O-RING

2шт.

3

153626A1

O-RING

2шт.

4

153459A1

FLANGE

4шт.

5

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

8шт.

6

150124A1

FLANGE

4шт.

7

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

8шт.

8

M01X0813

NIPPLE, LUBE

1шт.

Выбрано товаров: 8
