Запчасти Case CX490D LC (35.738.AE[02]) - VAR - 461544, 461548, 461549, 781184 - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

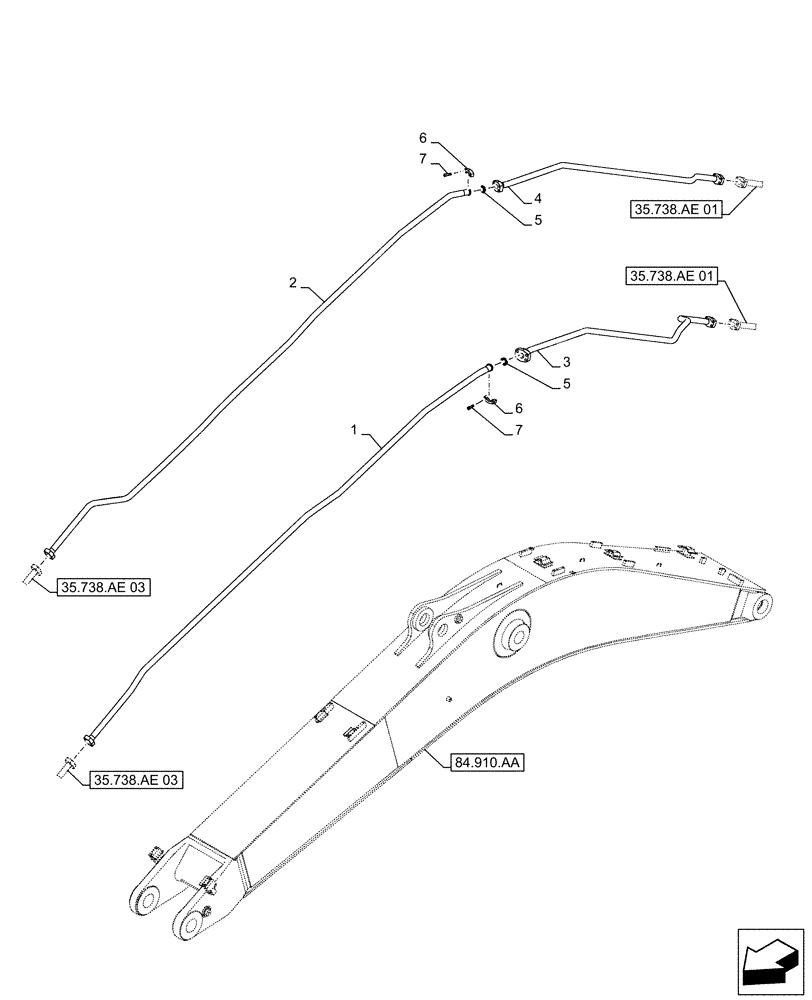

Схема запчастей Case CX490D LC - (35.738.AE[02]) - VAR - 461544, 461548, 461549, 781184 - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
35.738.ae 01
6
2
7
6
5
1
3
7
4
5
84.910.aa
35.738.ae 03
35.738.ae 03
35.738.ae 01

Артикул

Название

Примечание

Количество

1

KTV19581

PIPE

Bucket Cylinder to Main Control Valve

1шт.

2

KTV19591

PIPE

Bucket Cylinder to Main Control Valve

1шт.

3

KTV18671

PIPE

Bucket Cylinder to Main Control Valve

1шт.

4

KTV18681

PIPE

Bucket Cylinder to Main Control Valve

1шт.

5

153626A1

O-RING

2шт.

6

150124A1

FLANGE

4шт.

7

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

8шт.

Выбрано товаров: 7
