(35.738.AE[01]) - BUCKET CYLINDER, LINES

Запчасти Case CX490D LC (35.738.AE[01]) - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

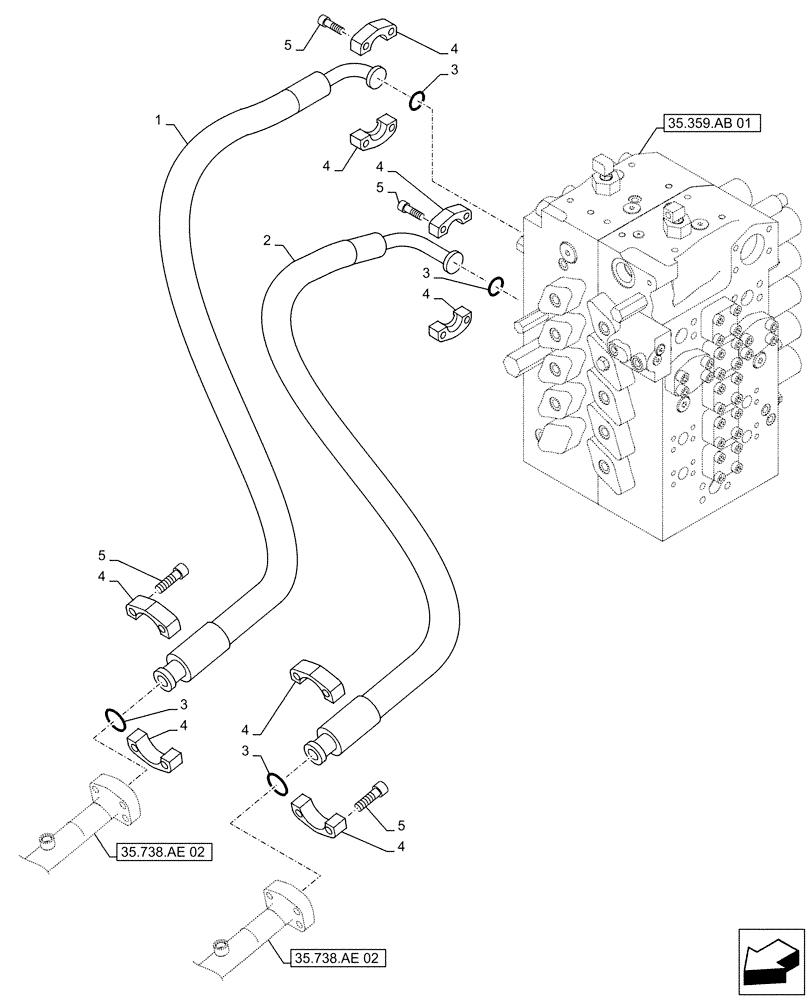

Схема запчастей Case CX490D LC - (35.738.AE[01]) - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
35.359.ab 01
5
1
4
3
4
5
2
4
3
4
4
4
4
5
3
3
4
5
35.738.ae 02
35.738.ae 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KTJ15770

HYDRAULIC HOSE

from Main Control Valveto Bucket Cylinder

1шт.

2

KTJ15760

HYDRAULIC HOSE

from Main Control Valve to Bucket Cylinder

1шт.

3

153626A1

O-RING

4шт.

4

150124A1

FLANGE

8шт.

5

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

16шт.

Выбрано товаров: 5
