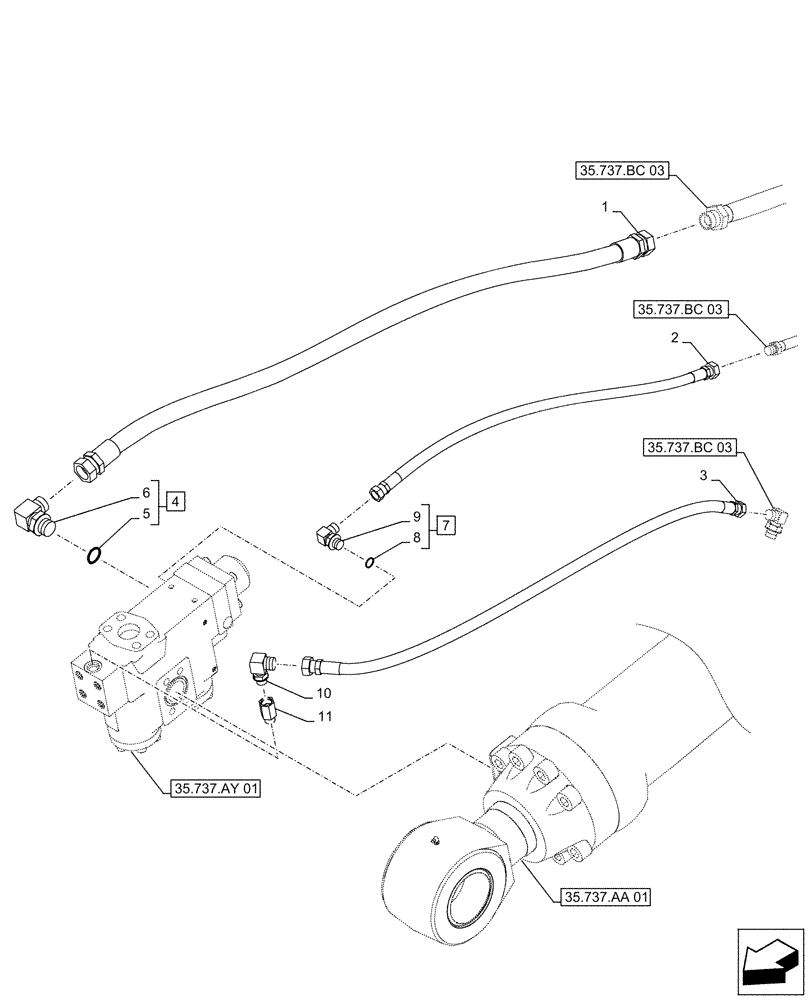

Запчасти Case CX490D LC (35.737.BC[05]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

KHJ35340

HYDRAULIC HOSE

from Safety Valve to Control Valve

1шт.

2

KHJ35350

HYDRAULIC HOSE

from Safety Valve to Control Valve

1шт.

3

KHJ35360

HYDRAULIC HOSE

from Safety Valve to Control Valve

1шт.

4

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

ASSY, G3/4 x G3/4, Incl 5, 6

1шт.

5

150542A1

O-RING

1шт.

6

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 4

1шт.

7

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

ASSY, G3/8 x G3/8, Incl 8, 9

1шт.

8

150031A1

O-RING,10mm ID x 24mm OD

1шт.

9

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 7

1шт.

10

157937A1

ELBOW

G3/8 x G1/2

1шт.

11

KHV0373

STUD

G3/8 x G3/8

1шт.
