Запчасти Case CX490D LC (35.736.AK[01]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

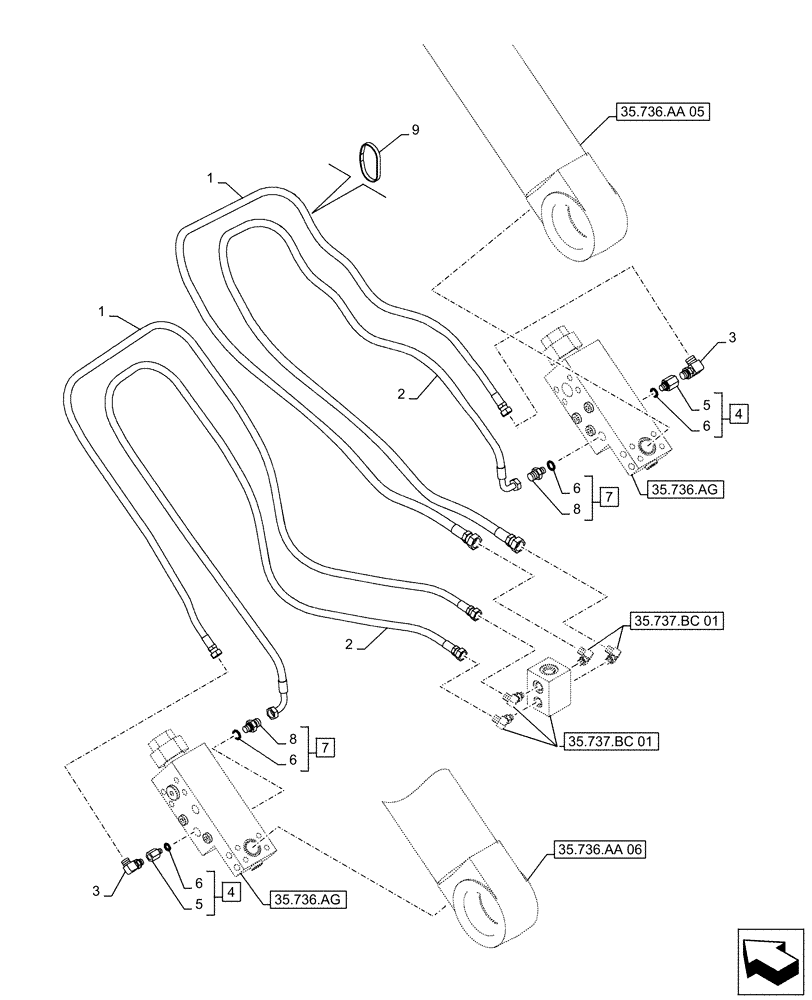

Схема запчастей Case CX490D LC - (35.736.AK[01]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS
35.736.aa 06
6
4
3
7
6
8
3
2
9
6
8
6
4
1
2
1
5
5
35.736.aa 05
7
35.736.ag
35.736.ag
35.737.bc 01
35.737.bc 01

Артикул

Название

Примечание

Количество

1

KHJ19060

HYDRAULIC HOSE

2300mm

2шт.

2

KHJ19100

HYDRAULIC HOSE

9mm ID x 2300mm

2шт.

3

157937A1

ELBOW

2шт.

4

KHJ1584

UNION

ASSY, Incl 5, 6 (Qty 1)

2шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 4

2шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

7

152747A1

ADAPTER

ASSY, Incl 8, 6 (Qty 1)

2шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

2шт.

9

150071A1

MOUNTING CLIP

380mm

14шт.

Выбрано товаров: 9
