(35.360.AM[05]) - VAR - 461863 - ARM, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=4.85M)

Запчасти Case CX490D LC (35.360.AM[05]) - VAR - 461863 - ARM, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=4.85M) (35) - HYDRAULIC SYSTEMS

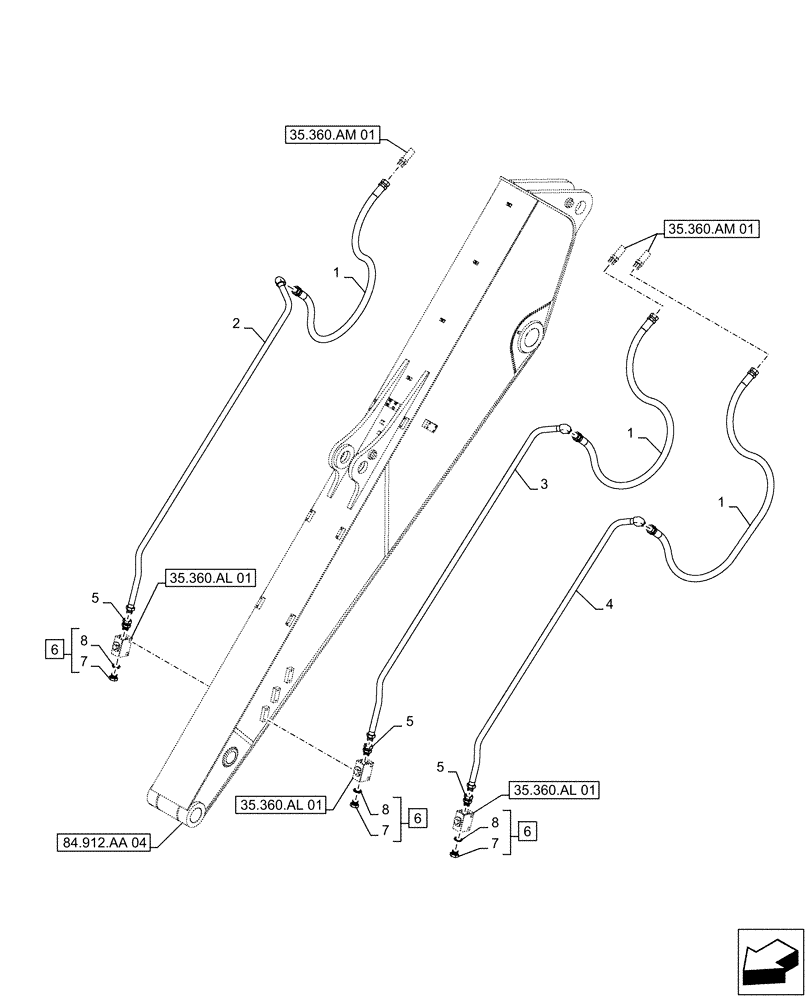

Схема запчастей Case CX490D LC - (35.360.AM[05]) - VAR - 461863 - ARM, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=4.85M) (35) - HYDRAULIC SYSTEMS
35.360.am 01
3
1
8
1
5
6
8
6
7
1
7
4
6
8
5
7
2
5
35.360.al 01
35.360.al 01
35.360.al 01
84.912.aa 04
35.360.am 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KTV21510

HYDRAULIC HOSE

19mm ID x 1600mm, to Bucket Valve

3шт.

2

KTV17910

PIPE

1шт.

3

KTV17890

PIPE

1шт.

4

KTV20400

PIPE

1шт.

5

167248A1

FITTING

3шт.

6

152924A1

PLUG

ASSY, Incl 7 - 8

3шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 6

3шт.

8

150542A1

O-RING

3шт.

Выбрано товаров: 8
