(35.360.AM[04]) - VAR - 461863 - ARM, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=4.0M)

Запчасти Case CX490D LC (35.360.AM[04]) - VAR - 461863 - ARM, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=4.0M) (35) - HYDRAULIC SYSTEMS

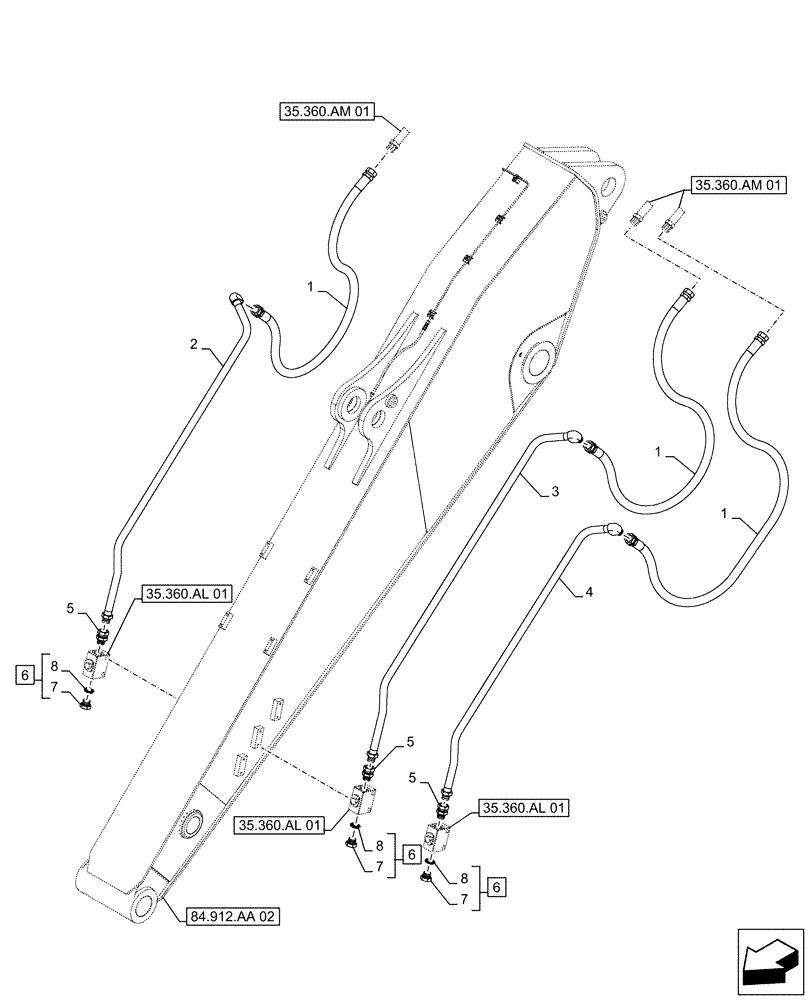

Схема запчастей Case CX490D LC - (35.360.AM[04]) - VAR - 461863 - ARM, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=4.0M) (35) - HYDRAULIC SYSTEMS
35.360.am 01
6
8
3
7
8
5
1
7
6
5
8
1
5
7
1
2
6
4
35.360.al 01
35.360.al 01
35.360.al 01
84.912.aa 02
35.360.am 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KTV13190

HYDRAULIC HOSE,19.00 mm ID x 170.00 mm

to Bucket Valve

3шт.

2

KTV15980

PIPE

1шт.

3

KTV15990

PIPE

1шт.

4

KTV16000

PIPE

1шт.

5

167248A1

FITTING

3шт.

6

152924A1

PLUG

ASSY, Incl 7 - 8

3шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 6

3шт.

8

150542A1

O-RING

3шт.

Выбрано товаров: 8
