Запчасти Case CX490D LC (35.360.AM[02]) - VAR - 461863 - ARM, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=2.53M) (35) - HYDRAULIC SYSTEMS

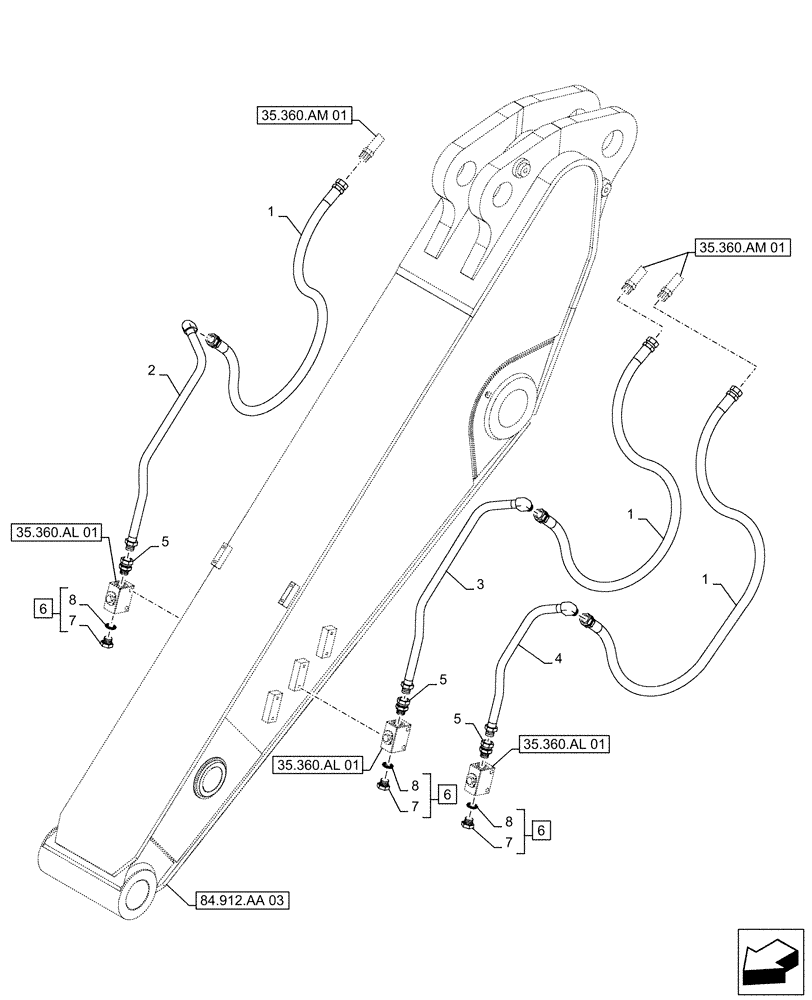

Схема запчастей Case CX490D LC - (35.360.AM[02]) - VAR - 461863 - ARM, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=2.53M) (35) - HYDRAULIC SYSTEMS
35.360.am 01
5
6
8
5
6
7
2
1
5
4
7
3
8
1
7
1
8
6
84.912.aa 03
35.360.al 01
35.360.al 01
35.360.al 01
35.360.am 01

Артикул

Название

Примечание

Количество

1

KTV13190

HYDRAULIC HOSE,19.00 mm ID x 170.00 mm

to Bucket Valve

3шт.

2

KTV20390

PIPE

1шт.

3

KTV20380

PIPE

1шт.

4

KTV20400

PIPE

1шт.

5

167248A1

FITTING

3шт.

6

152924A1

PLUG

ASSY, Incl 7 - 8

3шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 6

3шт.

8

150542A1

O-RING

3шт.

Выбрано товаров: 8
