Запчасти Case CX490D LC (35.360.AM[01]) - VAR - 461863 - BOOM, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

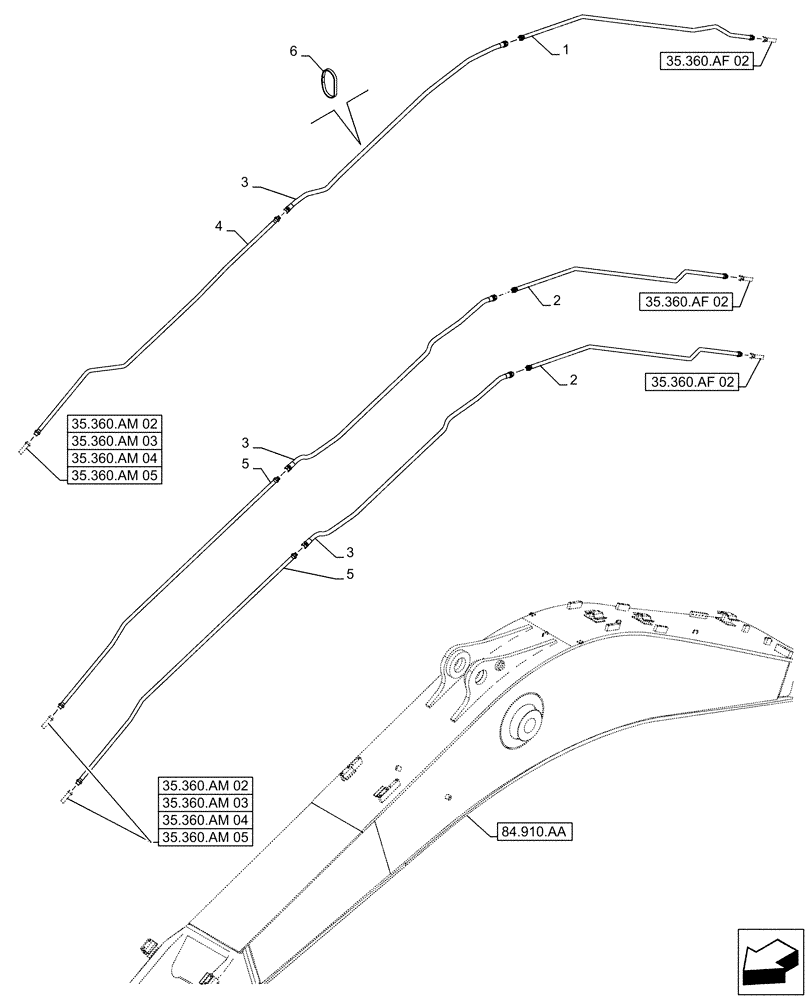

Схема запчастей Case CX490D LC - (35.360.AM[01]) - VAR - 461863 - BOOM, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.am 03
3
6
2
1
5
5
2
3
3
4
35.360.am 02
35.360.am 02
35.360.af 02
35.360.af 02
35.360.af 02
84.910.aa
35.360.am 05
35.360.am 05
35.360.am 04
35.360.am 04
35.360.am 03

Артикул

Название

Примечание

Количество

1

KTV19671

PIPE

From Bucket Valve to Stop Valve

1шт.

2

KTV19660

PIPE

From Bucket Valve to Stop Valve

2шт.

3

KTV21230

HYDRAULIC HOSE

19mm ID x 2350mm

3шт.

4

KTV19691

PIPE

to Stop Valve

1шт.

5

KTV19680

PIPE

to Stop Valve

2шт.

6

150071A1

MOUNTING CLIP

380mm

10шт.

Выбрано товаров: 6
